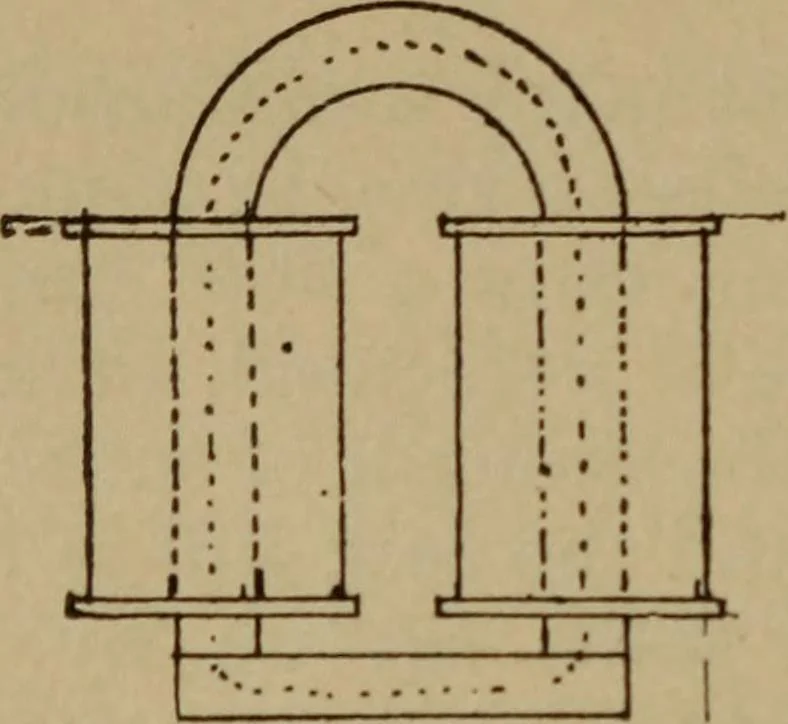

ds upon the magnetisingforce and reluctance. The length ofthe magnetic circuit in Fig. 185 i>shown by the dotted line. The re-luctance of all non-magnetic bodies i.practically the same, and when anysuch are interposed in a magnetic cir-cuit the number <>f lines of force isgreatly… … Fig. 185.-The Dotted CentreLine Represents the MeanLength of the Mag-netic Circuit. ance, and density, calculations are made similar to thused in an electric circuit, but are more complex. Induction= MagnetiringFoweReluctance To force one unit line of magnetic force through an airpath 1 inch long…
