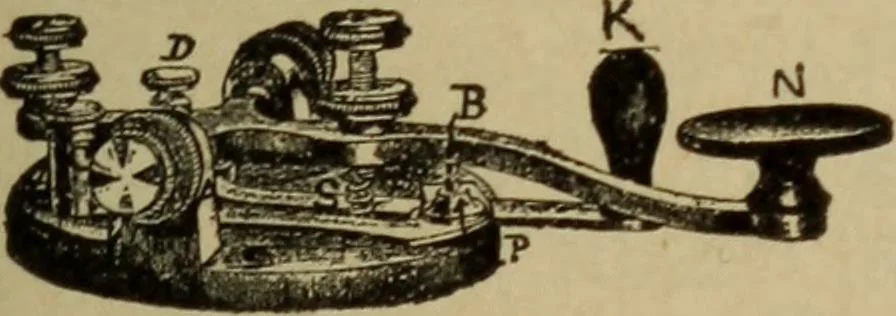

struc-tion of the transmitter, so that the sound of the voice isonly required to regulate or vary an electric current alreadygenerated by a battery, instead of being used to generate thecurrent. The general arrangement of two telephone stationswill be understood from Fig. 297. Each transmitter is… … Fig. 298.—Telegraph Trans-mitting Key. ether, and are connected in series with a battery circuit andthe primary of a small induction coil. Sound waves cause a vibration of the diaphragm, D, andthe varying pressure it exerts between the carbon button andthe hammer, causes variations in the battery…
