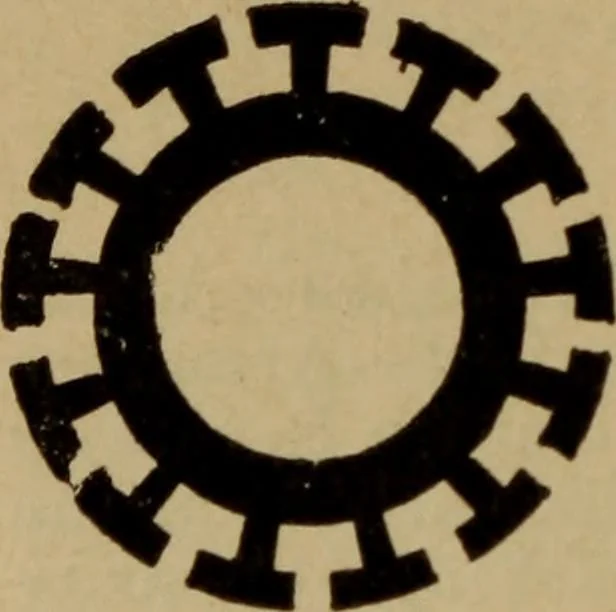

internal losses of a dynamo. A section of a solid armaturecore is illustrated in Fig. 334, and the direction of the in-duced eddy currents (found by Flemings Rule, ^[ 278),indicated at this particular position of the armature core inthe course of its revolution. The heat produced by thesecurrents… … Fig. 335.—Sheet Iron Armature Core Disc. .015-inch thick. creased, and as a result the C2R loss will be increased. are thus two evil effects of the eddy currents. Eddy current losses may be considerably diminished by building the armature up of a series of thin discs of soft sheet iron or steel,…
