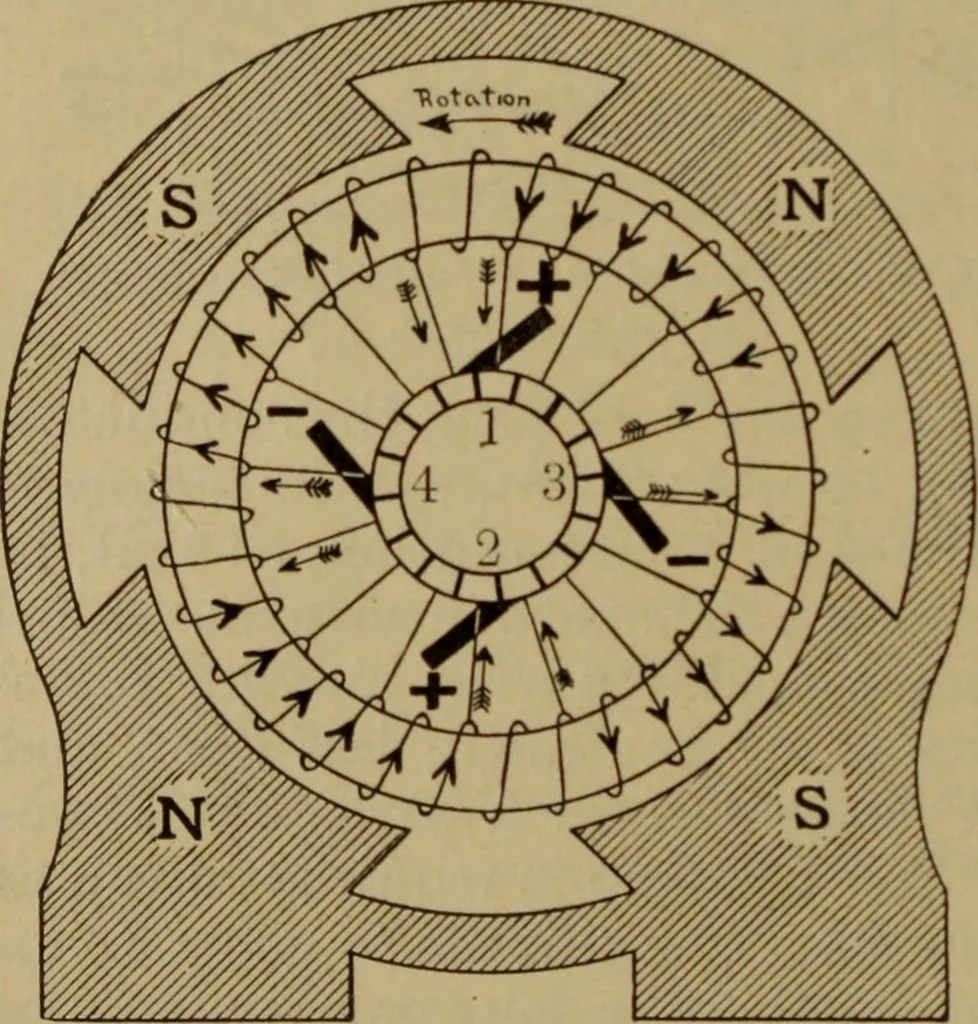

t; Bare opposed to each otherand flow to the externalcircuit by the -f brush 1and back to this halfof the armature by —brushes 3 and 4. At thesame instant the opposedcurrents in the lowerwindings flow to the ex-terna] circuit by H brush 2 and return to the arma-ture through — brushes 3 and 4. The… … Fig. 359.—Direction of Current Through the Windings of a Ring Armature Rotating in a Four-Pole Field. the neutral space,ence of potential between the + brushes, so that they are con-nected in parallel, as are also the negative brushes, and thento the external circuit. In multipolar machines there…
