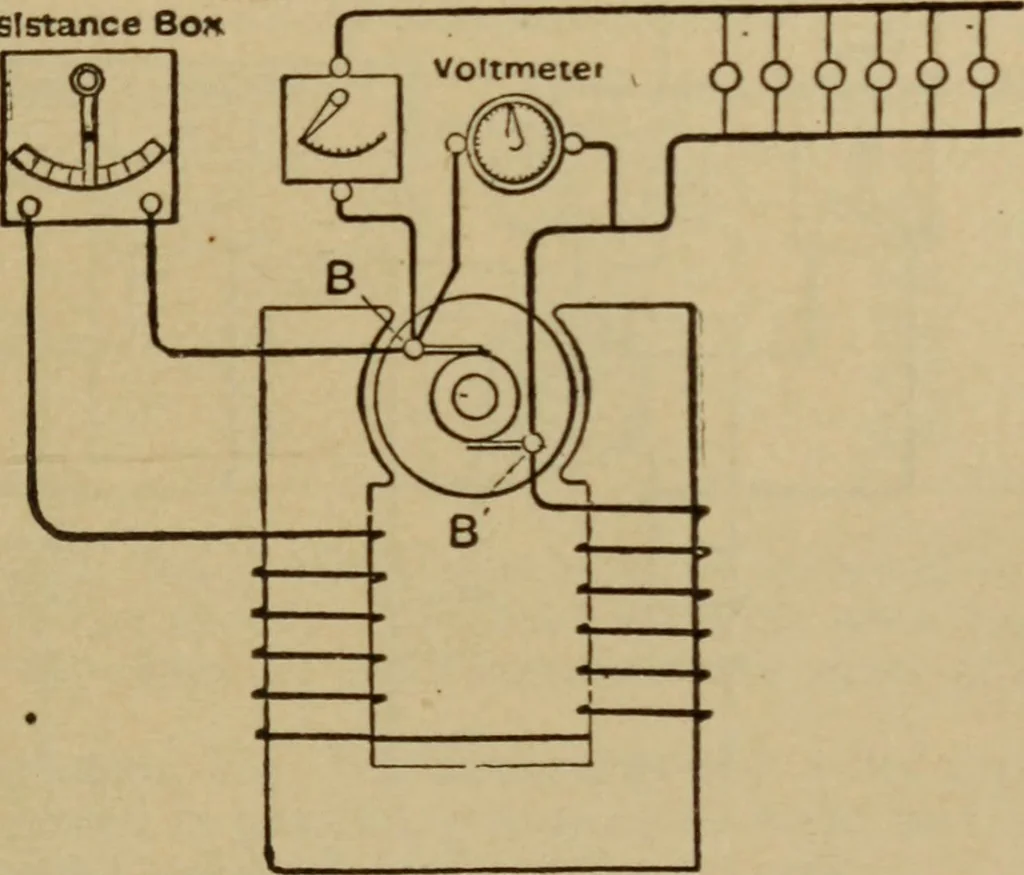

flowsaround the field, so that there are not quite so many lines offorce cut as before. When the load is switched on to a shuntdynamo, the resistance in the field rheostat must therefore bediminished so that the voltage will be raised to its former value. Again, in the above case, if after the… … Fig. 363.—Regulating the E. M. F. at the Brushesof a Shunt dynamo by the Shunt Field Rheostat. 382 PRACTICAL ELECTRICITY. voltage. The potential difference at the brushes thus varies,in a shunt dynamo, with each change in load, increasing asthe load decreases and decreasing as the load im If the…
