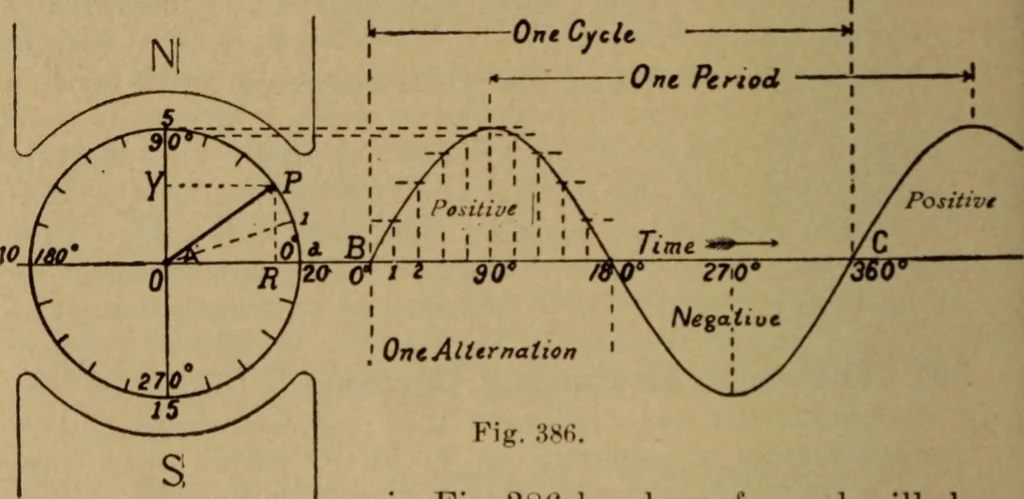

gradually rises from zero at 10 toits maximum value at 15, 270°, and then falling to zero, butin the opposite direction, since the coil is nowT under the oppo-site or S pole. 438 PRAVTK AL ELECTRR ITY The variation of an alternating current may always l>e re-presented by a wavelike curve a*… … Pig. 386. in Fig. 386 has been formed will showthat the ordinate on any point I* is proportional to the sine of the abscissa of that point. Hence it is called a Sifiutoidor sine curve. The ideal pressure curve from an alternator is sinusoidal.Commercial alternators, however, do not generate true…
