Lessons in practical electricity; principles, experiments, and arithmetical problems; over four hundred illustrations; an elementary text book (1909)
Swoope, C. Walton (Coates Walton), d. 1901 · New York, D. Van Nostrand company · leaf 86

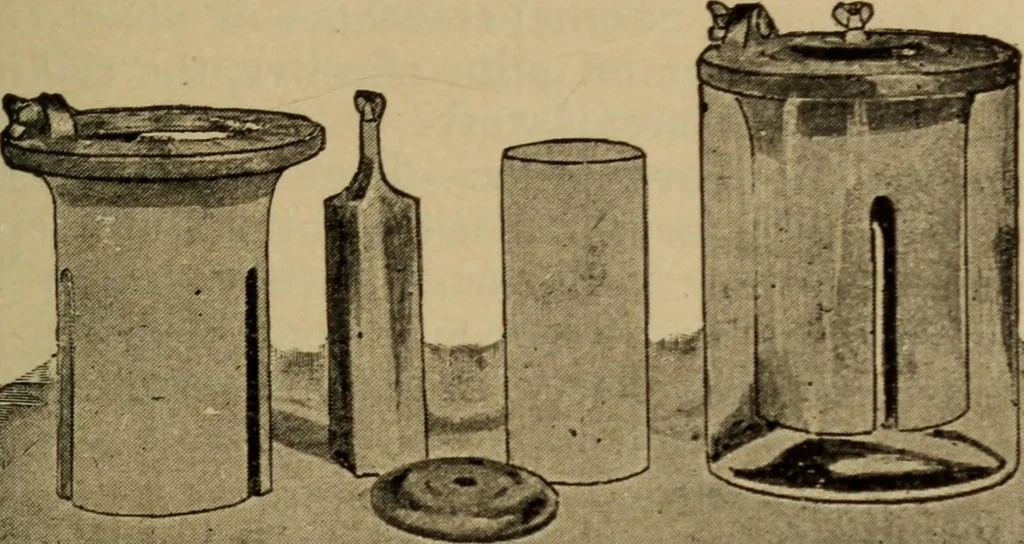

Fig. 80.—Fuller Cell. Zinc in dilute H.2S04 in porous cup. carbon in a bichromate solution. Another form BA TTER1ES. 67 85. Partz Acid Gravity Cell.—In the Partz acid gravityform of cell, Fig. 81-A, the electrolyte which surroundsthe /.me is either magnesium sulphate or common salt. … :-**, Fig. 81.—Fuller Cell.Zinc in porous cup with mercury and dilute H^SO^ carbon in a bichromate solution. The depolarizer is a bichromate solution which surroundsthe perforated carbon plate located in the bottom ofthe jar. A vertical carbon rod fitssnugly into the tapered hole in thecarbon…
