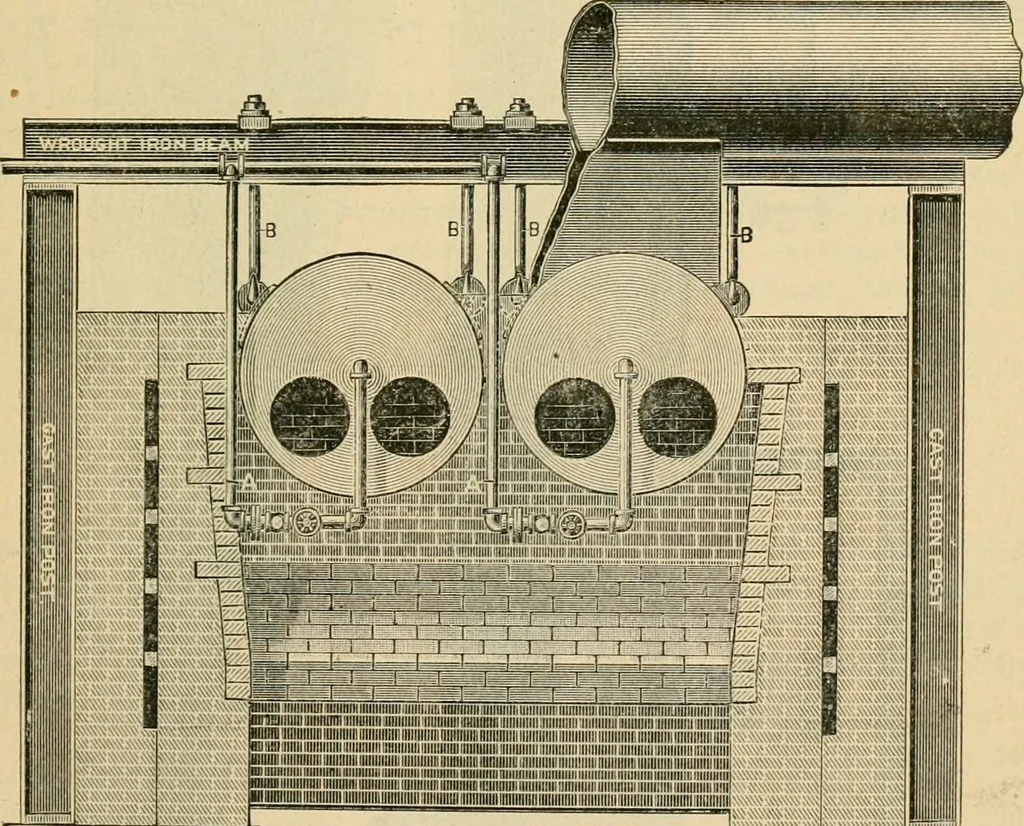

ettings arranged so that one furnacewill suffice for several boilers. The cuts illustrate one of these settings as designed fora saw-mill, Fig. 1 giving an end elevation and Fig. 2 a side elevation. In this case onlytwo boilers are shown, but the method can be readily extended so as to include… … <|||{j|jiiiS!!!*<<<<™<iiu^^^^ iaa^£55E55S5IB5r5 j n L —Hi i I Fig. 1. — Setting Boilers Over a Single Furnace. Since there is to be but one furnace, it is evident that the boilers cannot be sup-ported in the usual manner, but must be suspended from overhead by means of beams…
