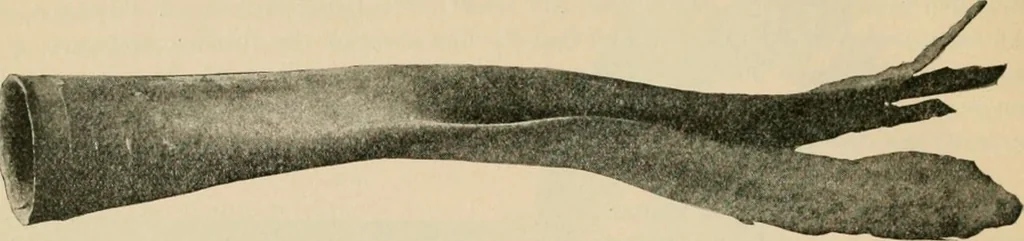

Fig. 9. flash-light pnotogkaph of interiorop Boiler. 150 THE LOCOMOTIVE. [(>( Tor.KR, the flash-powder being inserted and fired through the hand-hole. The picture soobtained is shown in Fig. 9. The lower row of tubes was driven to the bottom ofthe shell, and the other tubes had all been blown… … Fig. 10.— One of the Crushed Tubes. so as to leave a clear circle around it perhaps two feet in diameter. The tubes in theneighborhood of the shattered one were all crushed in on the side towards the center oftlie explosion. One of these tubes is shown in two views, in Figs. 10 and 11. Theviolence…
