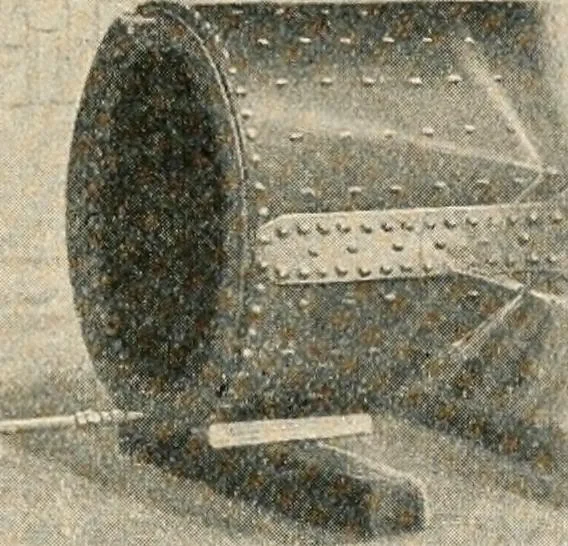

butted together, and each was secured to an outside strap, ^thick and 7 wide, by means of a single row of rivets, which were pitched 2§ apart,and driven in holes that were f£ in diameter. Beyond the stay-bolted part of theshell, the outer strap was increased in width, and an inner strap, | thick… … Fig. 5. — Leakage at the Tkifle Riveted Joint. the pitches being 3f and 6f, while the holes were || in diameter, as before. Owingto the short space allotted to the triple-riveted section of the joint, there was only onefull space of 6| on the outside row of rivets, the pitch between the two outside…
