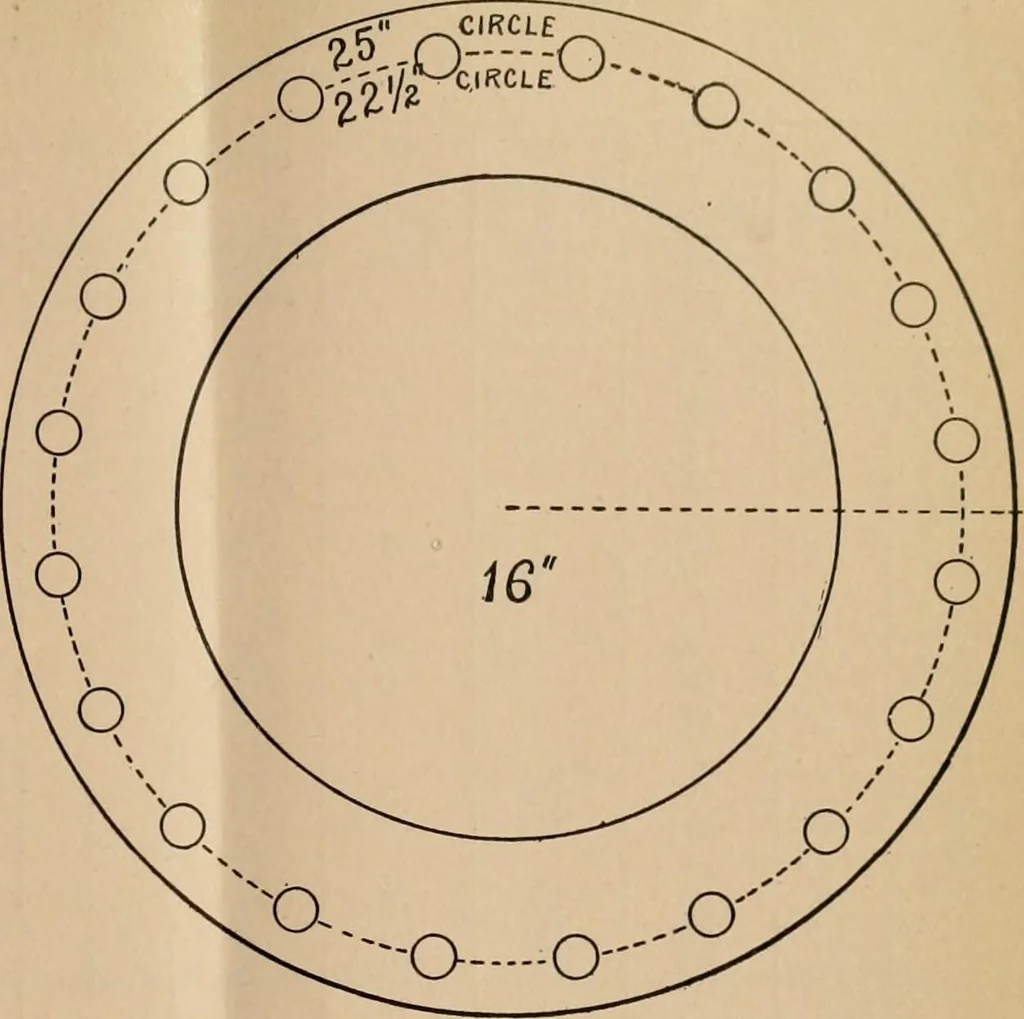

nch, six-inch, ten-inch, and sixteen-inch pipes, to illustrate this feature ofthe arrangement of the bolts. In Fig. 2 the words 6£ circle relate to the outsidediameter of the flange, while the words 5 circle Tefer to the bolt circle; and the cor-responding inscriptions on the other diagrams are to… … Fig. 6. — Extra Heavy Flange for Sixteen-InchPipe. (One-Eighth Actual Size.)
