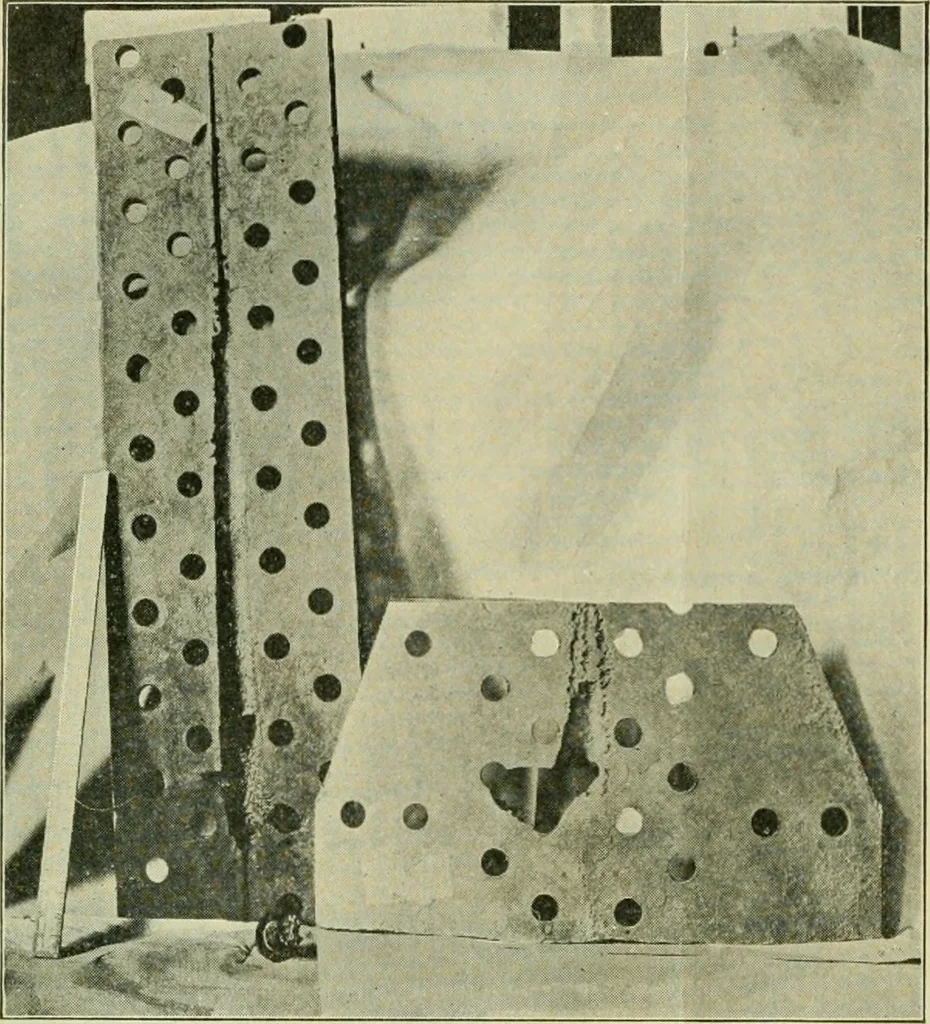

Fig. 3. Outside Surfaces of Outerand Inner Straps (Surfaceswhich would be visible on anUnlined Digester). 102 THE LOCOMOTIVE. [October. … a large area of the in-side surface of theinside strap couldtake place. The totalextent of the corro-sion on the surface iswell shown in thephotograph, Fig. 3.Eating into the strap,however, the liquorsoon penetrated to arivet and passedthrough, eating themetal of the rivet aswell as that at theedge…
