Hartford Steam Boiler Inspection and Insurance Company · Hartford, Ct. : Hartford Steam Boiler Inspection and Insurance Co · leaf 55

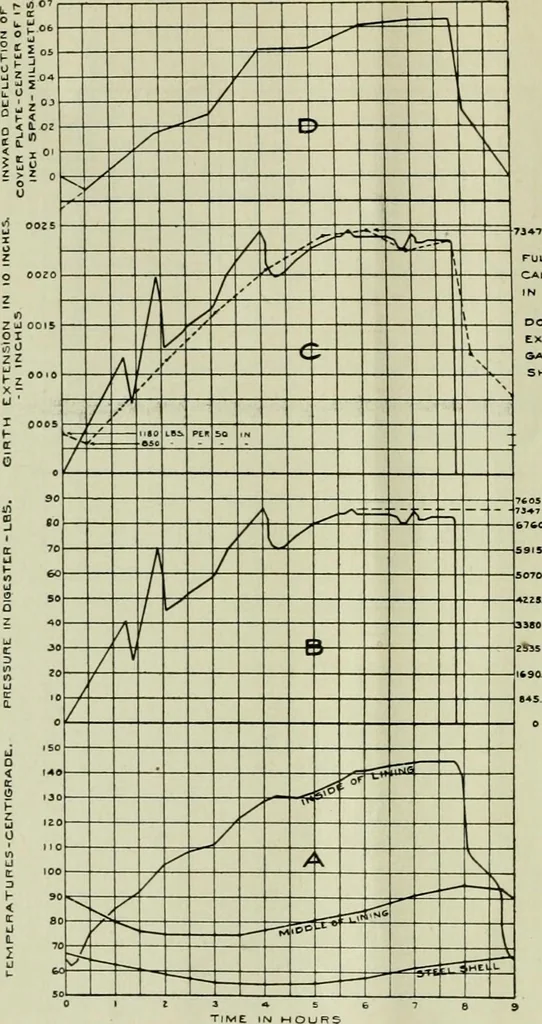

th Fig. 14. The maximaof the two curves are placed as nearly coincident as possible in order to showhow nearly back to zero the dotted line will come; in other words, how nearlyback to rest the shell plate will come, at the beginning of a cook. It willbe noted that there appears to be 1180 lbs. per… … FULL LINE. SHOWS EX CALCULATED FROM P RES3U IN DIGE.STE.R DOTTED LINE. SHOV 9 EXTENSIONS BY STRAIN GAUOE — CORRECT ED rc SMELL, TEMPEWAT URES r,.7. i CALCULATtQDIRECT 3TRt33EJ. For convenience of comparison, diagram D, showing the correspondingdeflections at the center of the cover plate, is…
Locomotives · Steam-boiler explosions
Internet Archive · Carnegie Library of Pittsburgh · Public Domain Mark 1.0. Free to use for anything.
