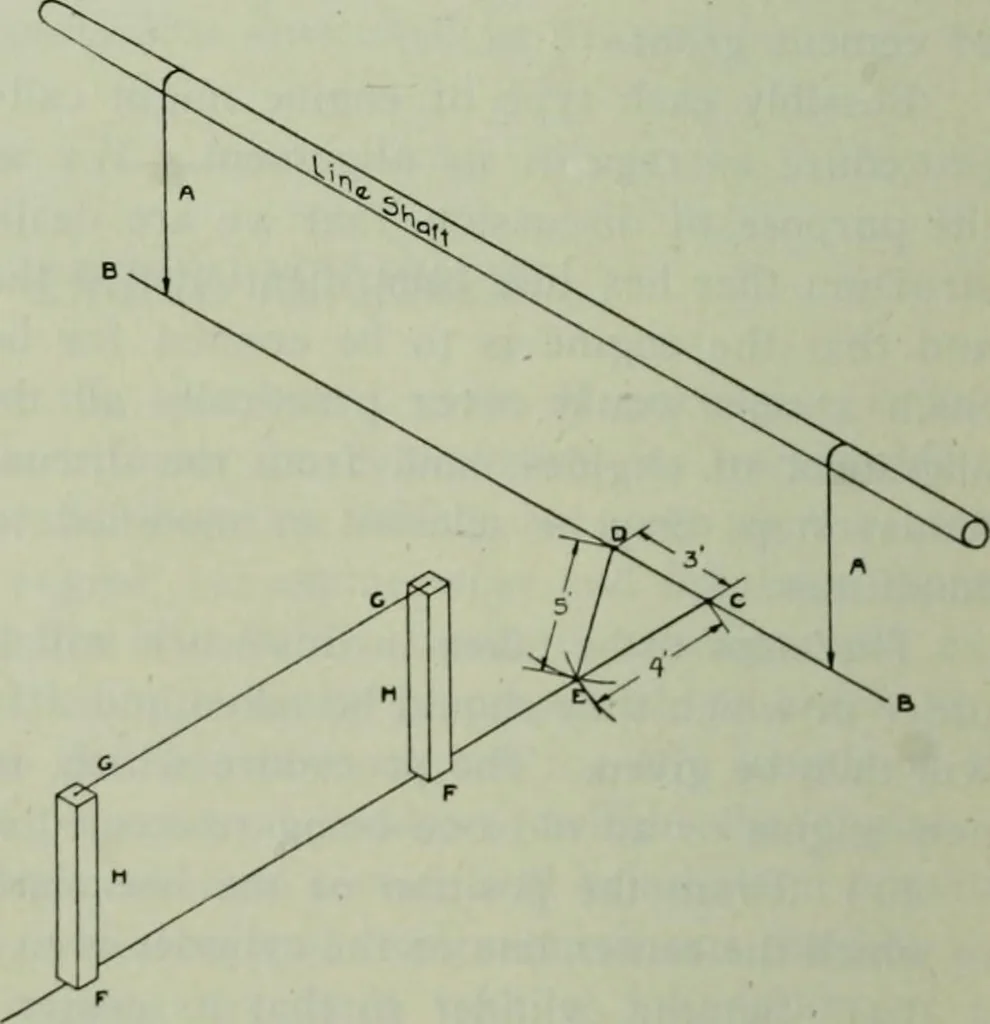

cross-head slide willbe made parallel. To secure this reference line the line shafting must be placed inalignment from hangerto hanger. The nextstep is to drop a plumbline from two points ofthe line shaft to thefloor, as shown in Fig. 1at AA, and thus get theline BB which willnecessarily be… … 1921] I 111- LDCllM ()T I V K 201 of four feet and anotlier with center at I) and radius of five feet.The intersection of these two arcs will give the point E and the linethrough CE will be perpendicular to the line BB because the sum ofthe squares of the two short sides of a right angled triangle…
