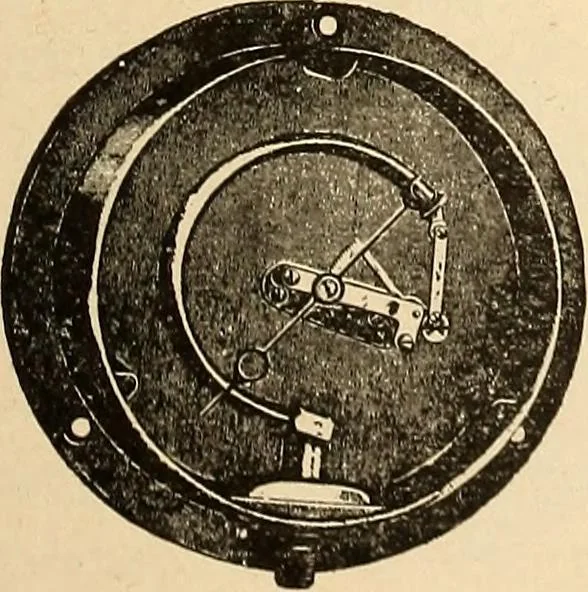

eof all accurate pressuregauges. THE ASHCROFT GAUGES.These gauges have non-corrosive movements andare constructed of Bourdon springs of seamless drawntubing. Fig. 16 shows the interiormechanism of the single Bour-don spring steam gauge, andFig. 17 the same of the doubleBourdon springaddition… … gauge with the Fig. 16. Ashcroft Single RourdonSpring Steam Gauge.
