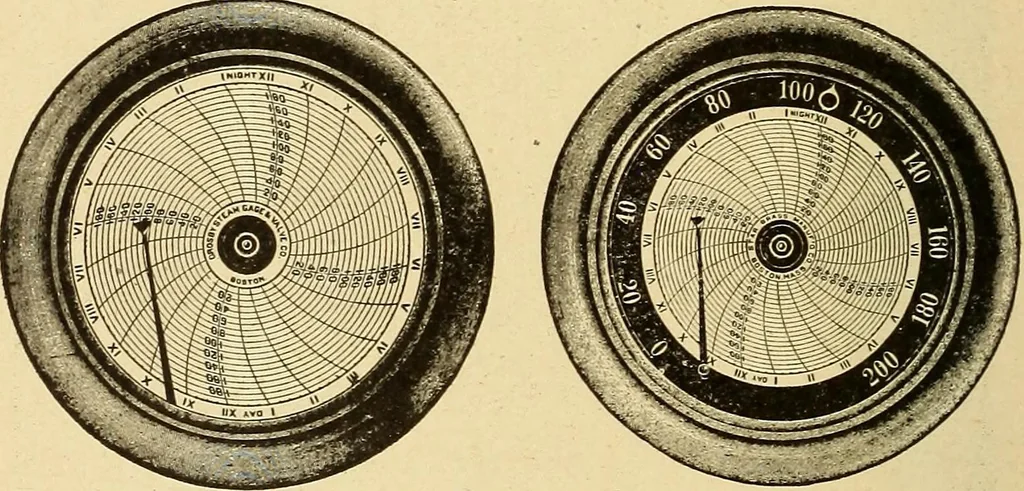

e seen from Fig. 32to consist of two capsular springs, each actuating its own pointer. 110 LOCOMOTIVE APPLIANCES. PRESSURE RECORDING GAUGES. In order to have a graphic record showing everyvariation of pressure and the time of day or night,the pressure recording gauge is sometimes appliedto a… … Fig. 33.Pressure Recording Gauged Fig. 34. Star Pressure Recording Gauge. Both the Crosby and the Star pressure recordinggauges are similar in appearance, hence Fig. 33 willindicate the external appearance of either one. Fig.34 shows a Star recording gauge that has an ordinarygauge dial and pointer…
