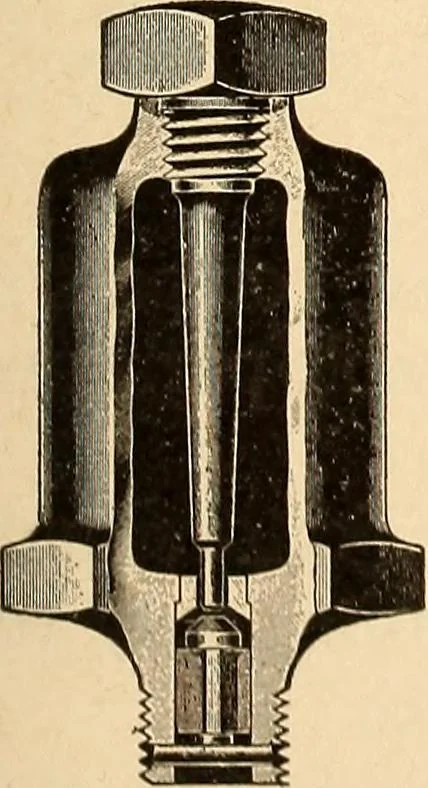

nternal parts ofany injector or inspirator it is verydesirable to have a suitable oil cup,as shown in the engraving (Fig. 1),attached to the injector or steam pipe. It is considered that the introductionof oil into the steam chamber is moreeffectual than its admission into thewater chamber. Hence… … Fig. i.Injector Oil Cup.(Sectional View.) parts subje 174 LOCOMOTIVE APPLIANCES. When the filling plug is unscrewed sufficiently toallow the steam to escape, the valve in the bottomcloses and the oil cup can be readily filled withoutclosing the main steam valve. When the filling plugis again…
