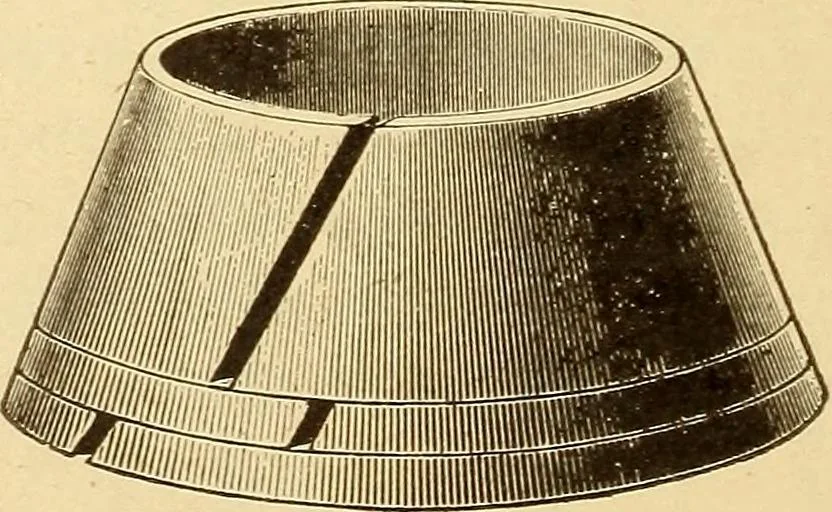

Fig. 4.Jerome Valve Stem Packing. ball joint is made at C by the addition of another ring, as before described for piston packing where desirable. When the valve stem wears or is turned down, it is … Fig 5.Jerome Valve Stem Packing Rings. only required to make a smaller cone D, and add newpacking rings.Fig. 5 shows the babbitt rings for one valve stem, LOCOMOTIVE APPLIANCES. 231 turned up to proper size, ready for application. Incase it is not convenient to disconnect the valve stem,the rings…
