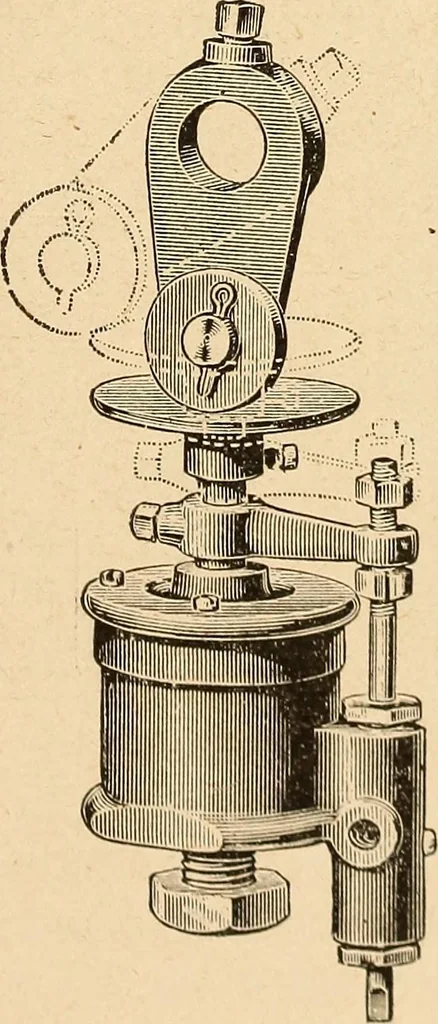

ES. 313 the admission port to open, thus again forcing thepiston upwards, as before described. Fig. 2 is atransparent view of the bell ringer, showing theworking of the valve within. The variation in the stroke of the ringer is made byadjusting lock nuts on reversing rod. To increasethe throw of… … Fig. 1. Chicago Locomotive- Bell Ringer. engraving suffices for an explanation after the principles of the foregoing devices have been described. AUTOMATIC STEAM BLOWERS. THE HUFF AUTOMATIC STEAM BLOWER. This automatic steam blower is a simple and noveldevice inserted in the blower pipe immediately…
