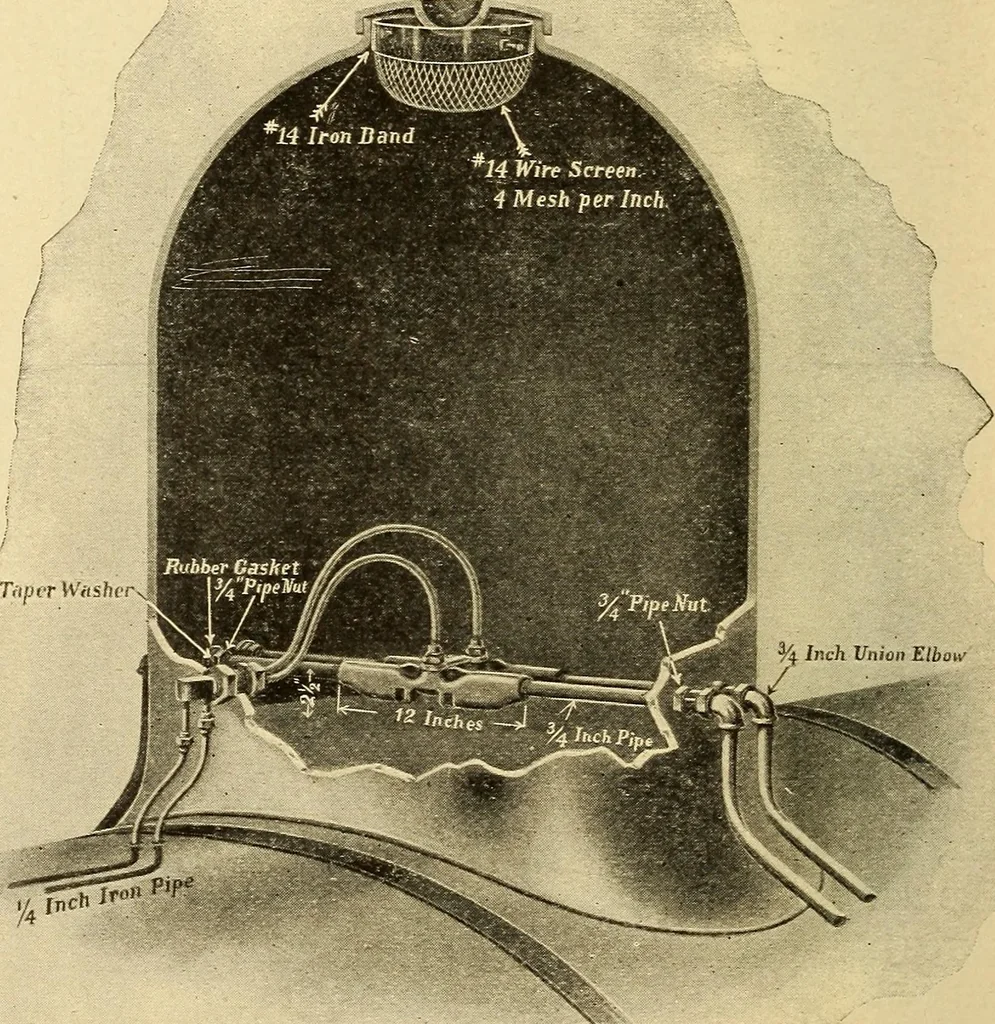

particular. The action of the She sander, as shown in Fig, 6,is that of a syphon and ejector. Thesyphon used inconnection with this device is especially designed to 456 LOCOMOTIVE APPLIANCES. carry the sand through the pipes to the rail with greatvelocity, and uses only a small amount of air… … Fig. 6.The She Sander, Showing Application to Sand Box. It is simple in construction, being so arranged thatthe air nozzles are always out of the sand, and there-fore they cannot become clogged when not in use. LOCOMOTIVE APPLIANCES. 457
