Locomotive breakdown questions answered and illustrated (1907)
Wallace, W. G · Chicago, F. J. Drake & Co. · leaf 181

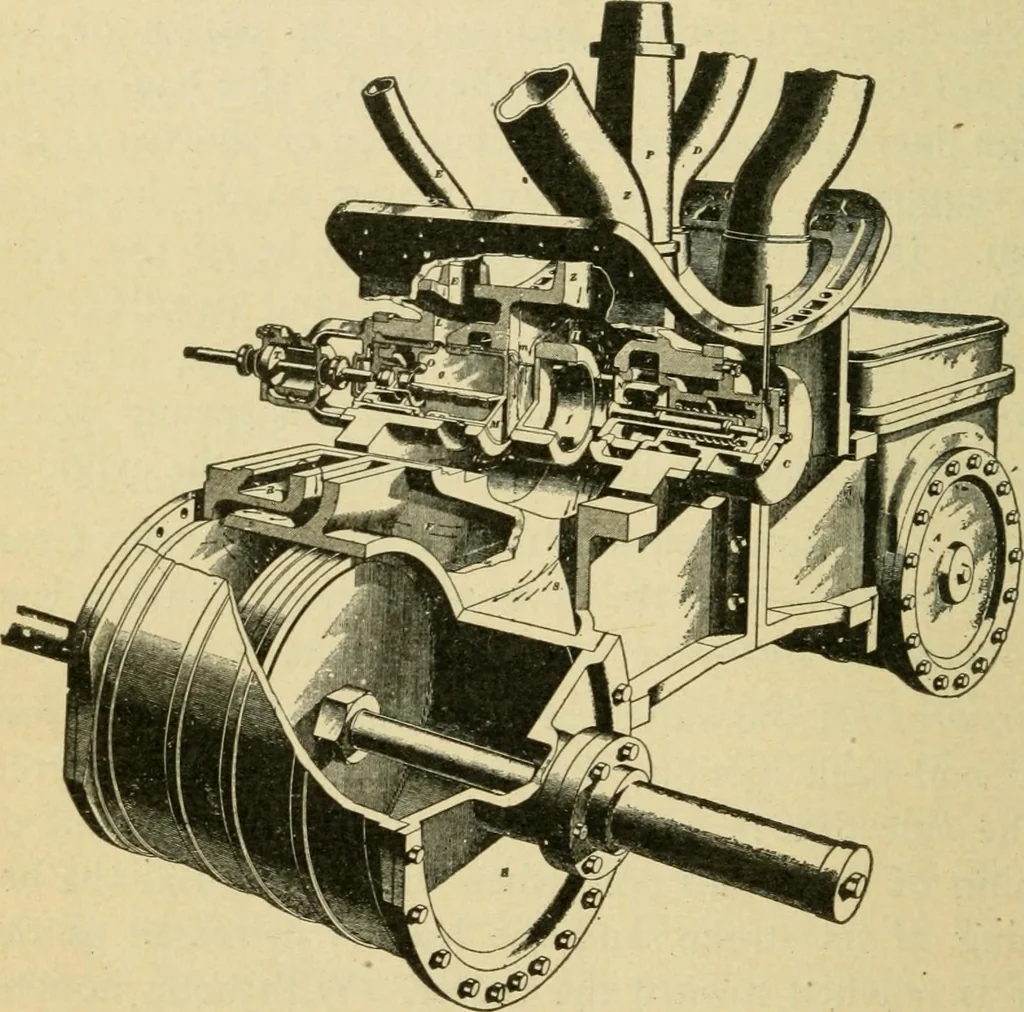

would be impossible to cover the portswhen on center, as the lead would be the same with leverin either forward or back motion and would increase asthe lever was drawn to the center of the quadrant. 236. Broken Steam Chest on Two-CylinderSchenectady Compound.—What should be done ifright-hand steam… … Valve Arrangement of Schenectady Compound Locomotive. M-Intercepting valve controlling passage mn leading from chamber I to chamberG ; N-Emergency exhaust valve controlling opening from I to emergency exhaust pas-sage c; O-Reducing valve admitting live steam to G and regulating its pressure…
