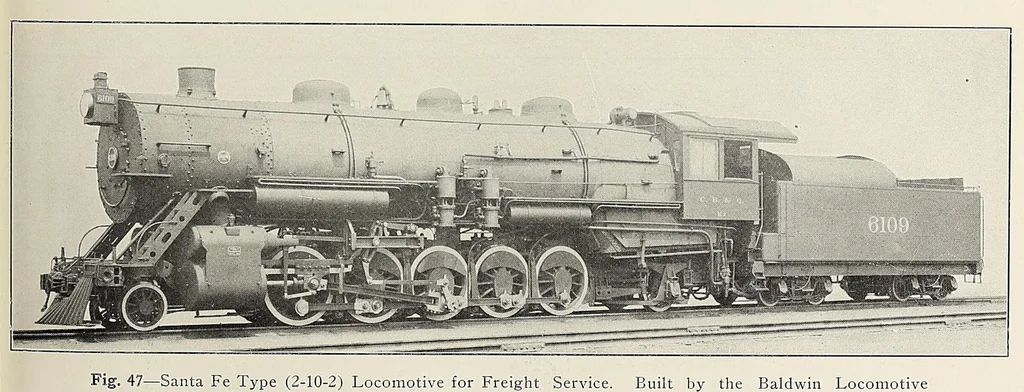

comotive for Freight Service. Built by the American Locomotive Company for the Chicago, Indianapolis & Louisville. Cylinders, 28 in. x 30 in. Steam Pressure, 190 lbs. Diameter of Drivers, 57 in. Tractive Effort, 66,700 lbs. Heating Surface — Tubes, 4,485 sq. ft.; Firebox, 276 sq. ft.; Total, 4,761… … Fig. 47 — Santa Fe Type (2-10-2) Locomotive for Freight Service. Built by the Baldwin Locomotive Works for the Chicago, Burlington & Quincy. Cylinders, 30 in. x 32 in. Steam Pressure, 175 lbs. Diameter of Drivers, 60 in. Tractive Effort, 71,500 lbs. Heating Surface — Tubes, 4,966 sq. ft.; Firebox,…
