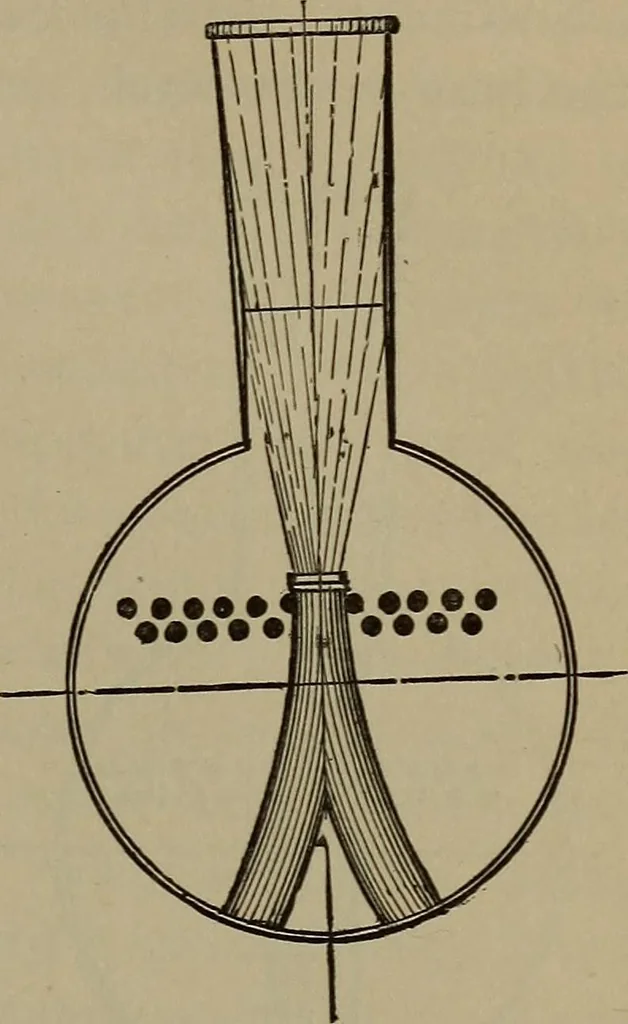

of the escaping steam on the gases. A higher steamvelocity is required to create the needed draft in thiscase. Fig. 42 illustrates a defect of exhaust action verycommon where double nozzles are used. Its effect issimilar to that mentioned in the last paragraph; butin some cases it is much worse,… … Fig. 41. 326 LOCOMOTIVE ENGINE RUNNING. Fig. 43 illustrates another pernicious form of badadjustment. In this case the steam strikes wide atthe base of the stack, and delivers some of its volume
