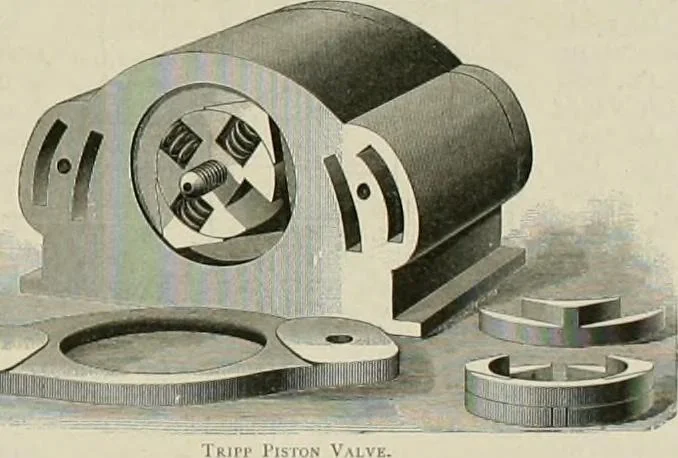

actly the presentsteam and exhaust ports. The large engraving on this page repre-sents this valve case with relief plate off,with lollower and one ring out of piston.In the peculiar construction of the rings is one of the main features; there areseveral rings or sections of rings, but theyare so… … of the rings is shown on the right of theengraving; they interlock, and the foursprings shown press outward on the wedge-shaped part of the segments, and it isplain to see that to push out one of theseis to force out the entire ring; by break-ing joints with these segments a perfectjoint is…
