Locomotive engine running and management : a treatise on locomotive engines, showing their performance in running different kinds of trains with economy and dispatch; also directions regarding the care, management, and repairs of locomotives and all their connections (1888)
Sinclair, Angus, 1841-1919 · New York : J. Wiley · leaf 145

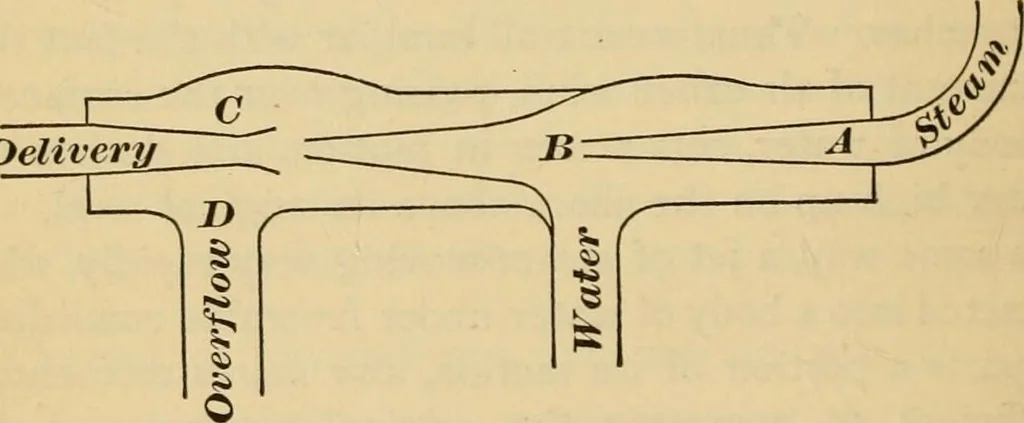

s from the throttle to work the injector, the wholeof the heat does not return to the boiler along with thefeed-water, as was first supposed to be the case ; but aportion of heat representing the foot pounds of workdone is dissipated, besides other losses incident to leak-age, radiation, and… … Fig. I. the boiler through the steam-pipe and receiving-tube A(Fig. i) at a high velocity, and, combining with thewater at the point B, condenses, but imparts considera-ble momentum to the water, which rushes along intothe delivery pipe, raises the check-valve, and passesinto the boiler. The tubes…
Locomotives
