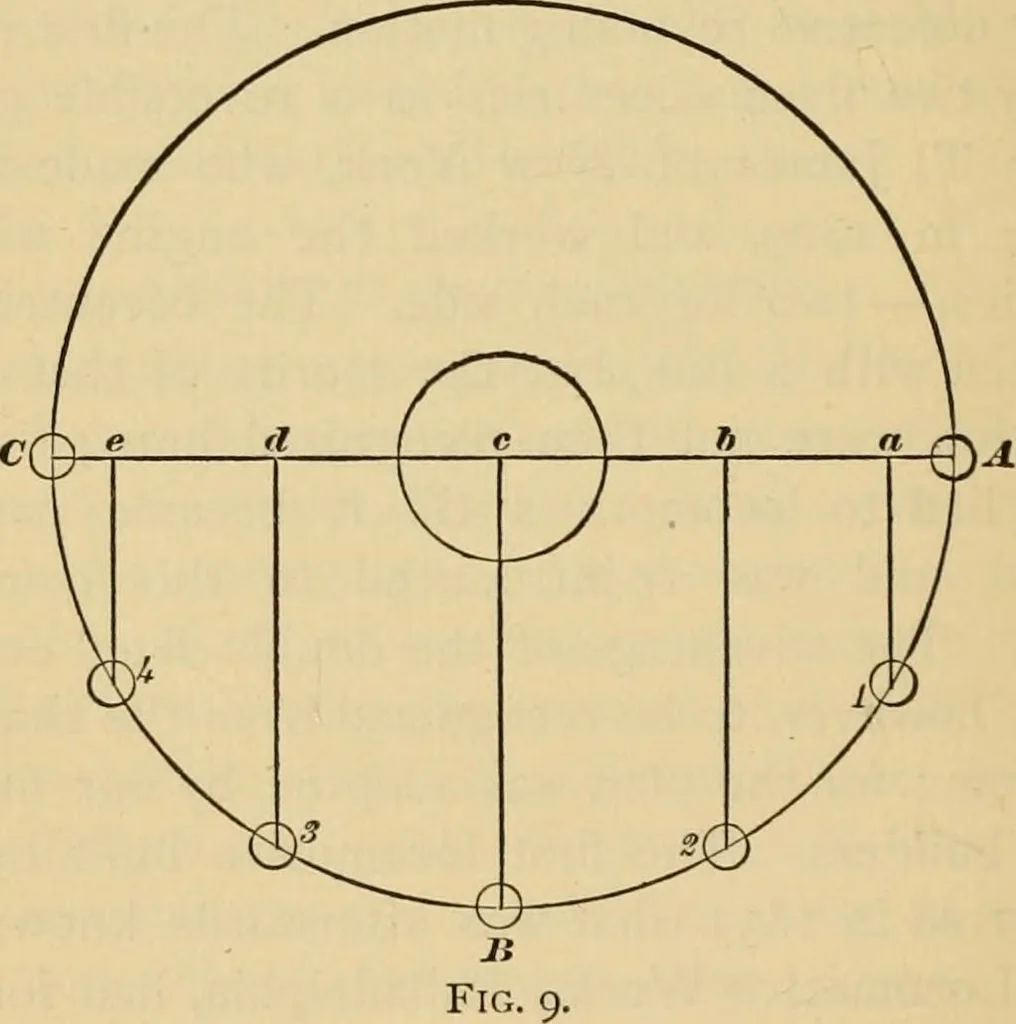

rregular velocity. Fig. 9 shows therelative motion of the crank-pin and piston during ahalf revolution. The points in the path of the crank- 2l6 LOCOMOTIVE ENGINE RUNNING. pin marked A, i, 2, B, 3, 4, 6^, are at equal distancesapart. The vertical lines run from them to the pointsa, b, c, d, e,… … travels a distance within the cylinder equal to the,straight line A C. The crank-pin travels at nearly uni-form speed during the whole of its revolution, but thepiston travels with an irregular motion. Thus, whilethe crank-pin travels from A to i, the piston travels adistance equal to the space…
