Locomotive engine running and management : a treatise on locomotive engines, showing their performance in running different kinds of trains with economy and dispatch; also directions regarding the care, management, and repairs of locomotives and all their connections (1888)
Sinclair, Angus, 1841-1919 · New York : J. Wiley · leaf 287

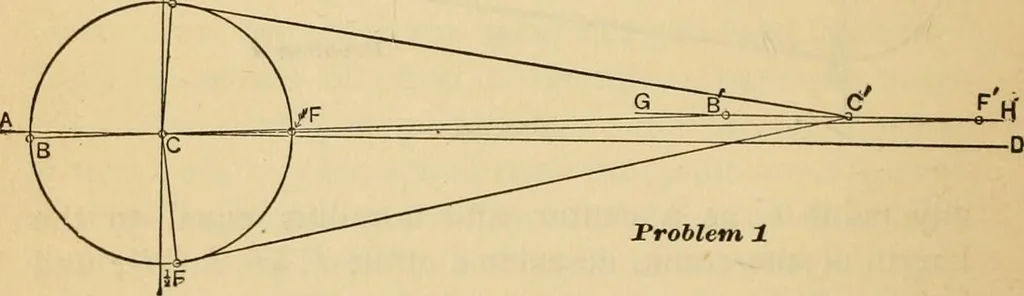

the center ofcrank-pin is at F, and B the center of cross-head pinwhen the crank-pin is at B, and the point C will be theposition of center of cross-head pin when piston is athalf stroke. With point C as a center, and a radiusequal to the length of the connecting rod, describe anarc passing through… … Problem 1 Fig. 21. It often happens that the axis of the cylinder is abovethe center of axle. When such is the case, we mustfollow the construction as shown in Fig. 2i. Let twoinches be the distance that the center of axis of cylin-der is above the center of axle. Draw a straight line AD through…
Locomotives
