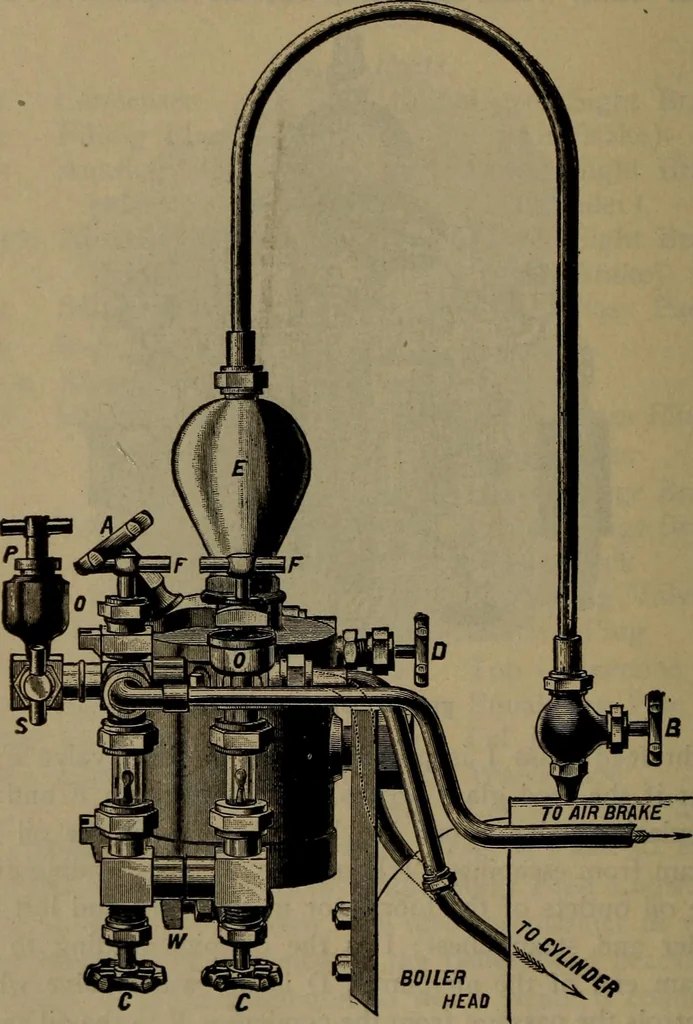

end of the air-pump; D is the water-valve whichcontrols the passage from the condenser E to the oil reser-voir 12 (Plate 31, Fig. 2) ; 14 is the glass-gauge whichregisters the amount of oil and water in the lubricator;W is the waste cock for drawing off the water from the n8 LOCOMOTIVE LUBRICATORS.… … ■ SIDE VIEW.A. Filling Plug. B. Steam Valve. C. C. C. Regulating Valves. F. F.F. Safety Valves. O. O. O. Auxiliary Oilers. W. Waste Cock. FIG. 2—PLATE 30. LOCOMOTIVE LUBRICATORS. 119 tial side view and Fig. 4 a top sectional view. Inside ofthe condenser are three equalizing tubes 21 (Figs. 1 and4),…
