Locomotive text for engineers and firemen; a complete treatise on the engine, electric head-light and standard code of train rules (1908)
National correspondence school of railroading, Chicago. [from old catalog] · [Chicago] · leaf 170

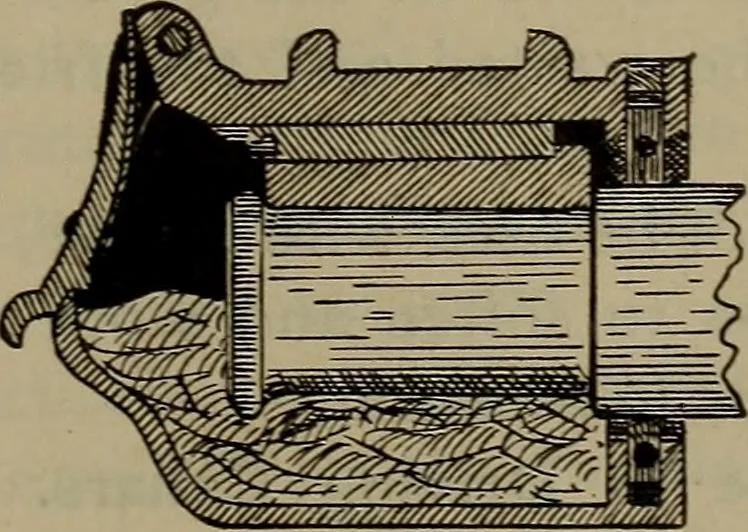

be filled too full, as the oilwill run over the side of the cups and be wasted. The piston and valve-stem swab should then be oiledor the swab oil cups filled, if cups are provided. The en-gine trucks should then be oiled, after which the otherside of the engine should be oiled in the same manner.… … PLATE 47. 160 LUBRICATION. Disturbing Packing on Top of Driving or TruckBoxes. It is bad practice to disturb the packing on topof driving and engine truck boxes with the spout ofthe oil can when oiling the engine, for the reason thatit stirs up any dirt, cinders or sand which may havelodged in the…
Locomotives
