Locomotive text for engineers and firemen; a complete treatise on the engine, electric head-light and standard code of train rules (1908)
National correspondence school of railroading, Chicago. [from old catalog] · [Chicago] · leaf 212

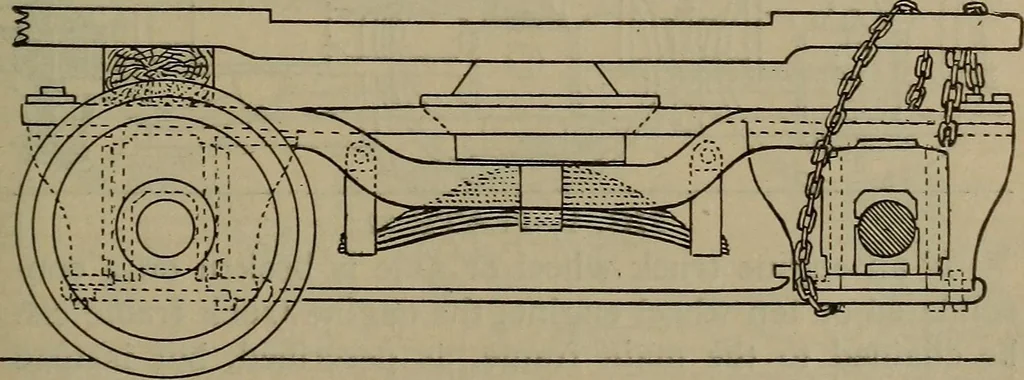

e taken up.The engine frame should then be raised in the same man-ner, bringing the truck frame a little higher than itsnormal position. The chain should then be crossed fromthe truck frame on the disabled side to the engine frameon the opposite side. This is done for the purpose ofkeeping the good… … PLATE 81. 202 BREAKDOWNS. BROKEN PONY TRUCK AXLE. If the journal on the pony truck of a Mogul engineis broken, the pilot beam should be fulcrumed up, thusraising the engine frame, the pony truck wheels removed,and blocking inserted between the bottom of the boilerand the top of the cross equalizer.…
Locomotives
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
