Locomotive text for engineers and firemen; a complete treatise on the engine, electric head-light and standard code of train rules (1908)
National correspondence school of railroading, Chicago. [from old catalog] · [Chicago] · leaf 224

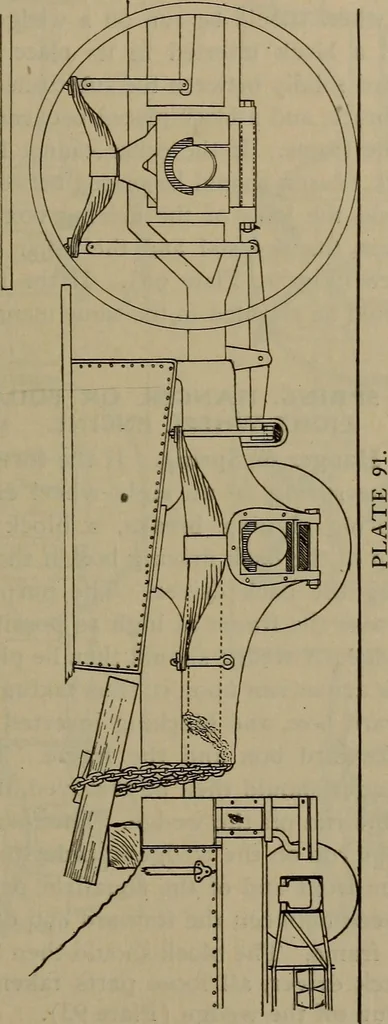

er than the thick-ness of the tire, remove the cellar and place a blockbetween the bottom of the journal and the box. Ablock should then be placed between the bottom ofthe box and the pedestal, the cross equalizer blockedup in the safety hanger, or the equalizer chained tothe frame and a tie or… … 214 BREAKDOWNS. to hold up the back end of the engine and also to keepthe good wheel to the rail while passing around curves. Atlantic Type Forward and Back Driving Tires.If a front tire on an Atlantic type of engine is broken,the forward wheel should be run on a wedge, the cellarremoved and a…
