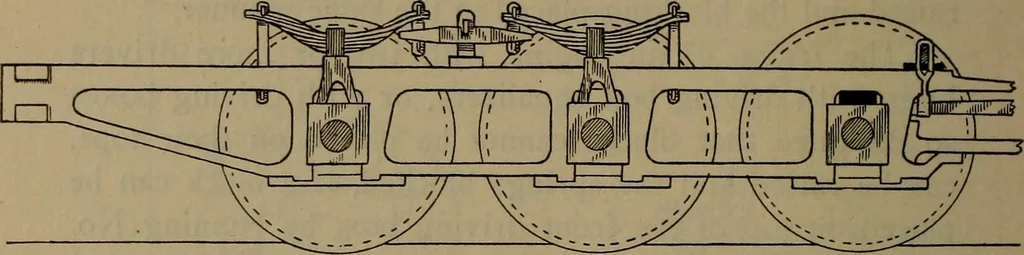

qualizer, theengine moved until the equalizer is raised higher thanits normal position and blocking placed between the topof the frame and the cross equalizer. If the clearancebetween the pilot and the top of the rail is sufficient, itwill not be necessary to place a block on the front driv-ing… … PLATE 109. BROKEN SPRING, HANGER OR EQUALIZER—AT-LANTIC TYPE ENGINES. If the front spring, front hanger, or the back hangerof the front spring is broken on an Atlantic type enginehaving spring rigging, as shown in Plate no, the backdriver should be run on a wedge, a block placed on topof the front…
