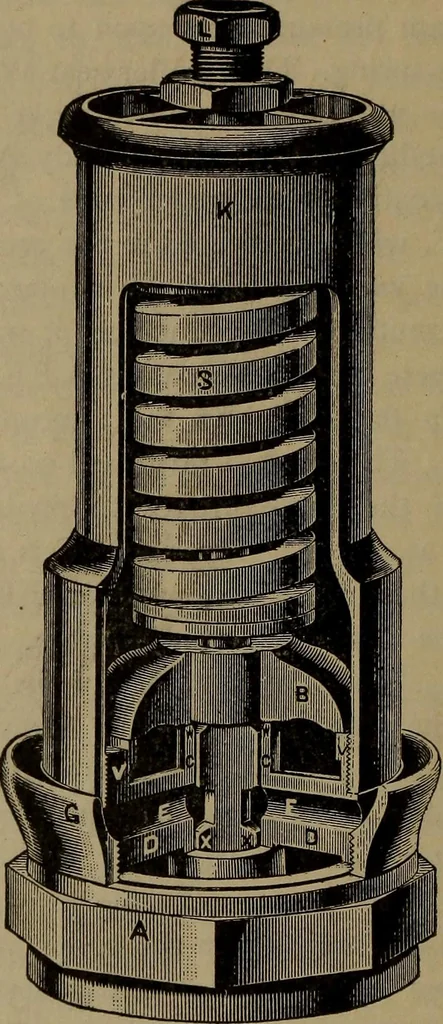

is forced higher and steam is admittedinto the well faster than it can escape through the pass-ages in the arms, and its pressure rapidly accumulatesunder the inner seat. This pressure acting upon an addi-tional area overcomes the increasing resistance of theregulating spring and forces the valve… … PLATE 15.CROSBYS POP SAFETY VALVE. SAFETY-VALVES. 83 The valve gradually settles down until the area of theopening into the well is less than the area of the aper-tures in the arms, and the valve promptly closes. Directions for Adjusting. Adjust the head bolt L,which compresses the spring, upward…
