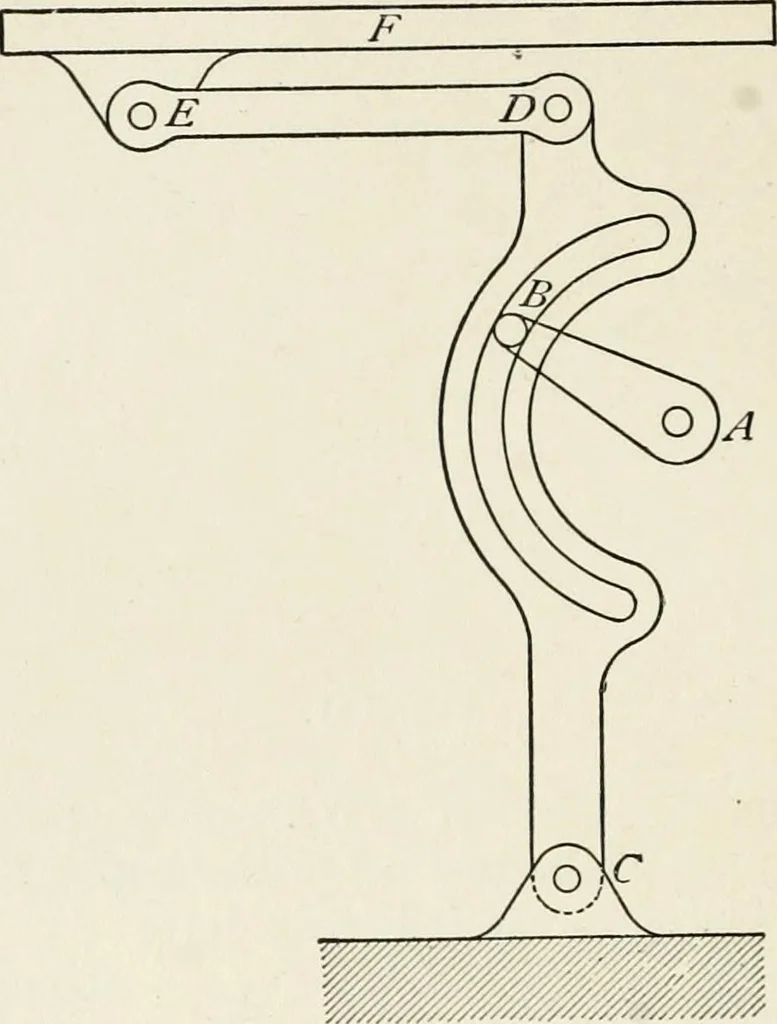

Fig. 181. 178. Assignment.—Lay out a Whitworth Quick Return mo-tion, with the path of the tool below the center B of the slottedcrank BP, according to the following data: Length of stroke in. Length of connecting rod in. Length of A. P in. R.p.m. of crank Period of advance to return of tool = 2 :1… … Fig. 182. 179. Assignment.—Assume center A directly above center C;also that slot in which B works is on the arc of a circle, withradius AB. Plot velocity-time diagram for member F if ABrotates continuously and members are proportioned as follows: Length AB (6-12) in. Length CD (18-30) in. Length…
