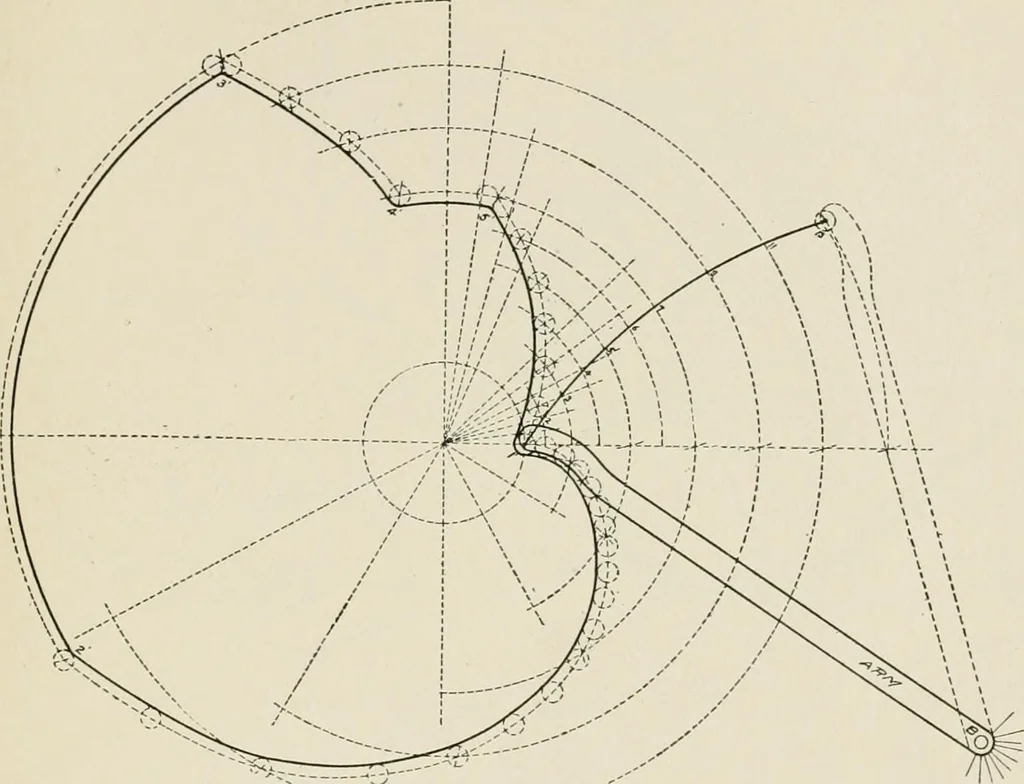

Fig. 182. 179. Assignment.—Assume center A directly above center C;also that slot in which B works is on the arc of a circle, withradius AB. Plot velocity-time diagram for member F if ABrotates continuously and members are proportioned as follows: Length AB (6-12) in. Length CD (18-30) in. Length… … Fig. 183. 180. Assignment.—Having given an oscillating arm, pivotedat point B, design a cam to move the end of the arm over the path 1, 2, 3, 4, 5 13. The cam may have a uniform or varying motion while the arm may move uniformlyor according to any law of motion desired. 320 MACHINE DESIGN Kinematic…
