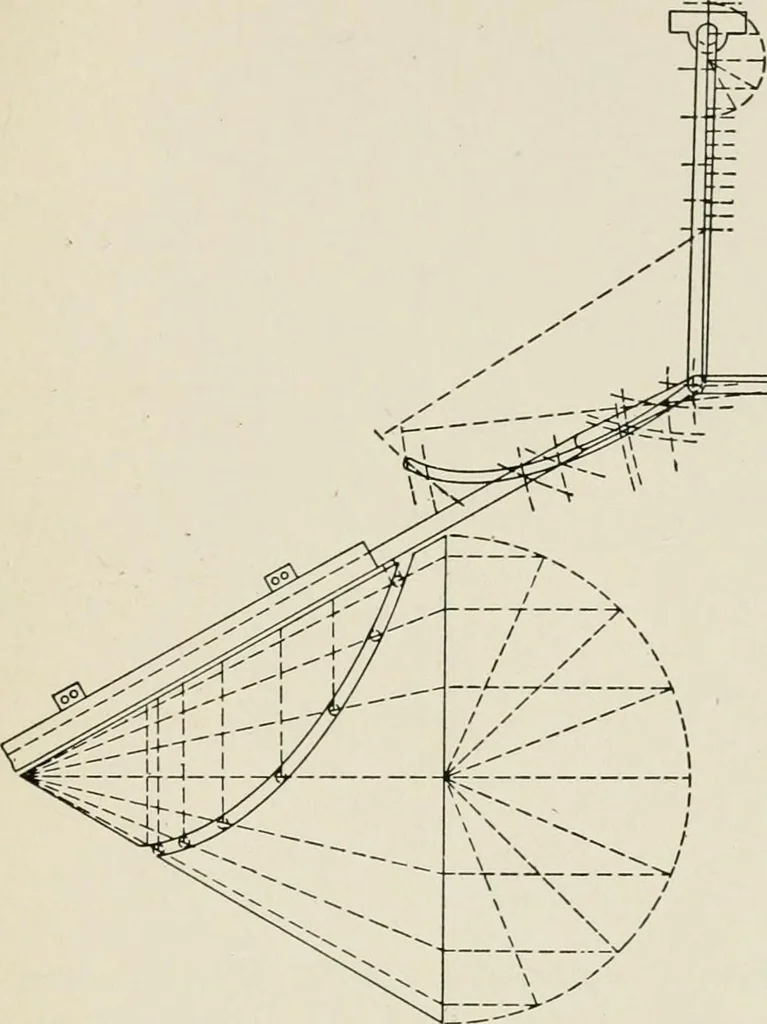

right angles. The length of thestroke, CD, is one-half that of AB. Motion is to be given toboth crossheads by a single rotating cam. Such guides andconnecting rods as are necessary may be employed. No partof the mechanism is to project within the angle DAB at any time.Motion away from A is to be… … --- in I A \ I I ni Fig. 185. 182. Assignment.—Let vertical crosshead be A, horizontalcrosshead be 5, the pin connection be C, then C will travelthrough the stationary cam curve as shown. Length of horizontal connecting rod in. Length of vertical connecting rod in. Travel of horizontal crosshead…
