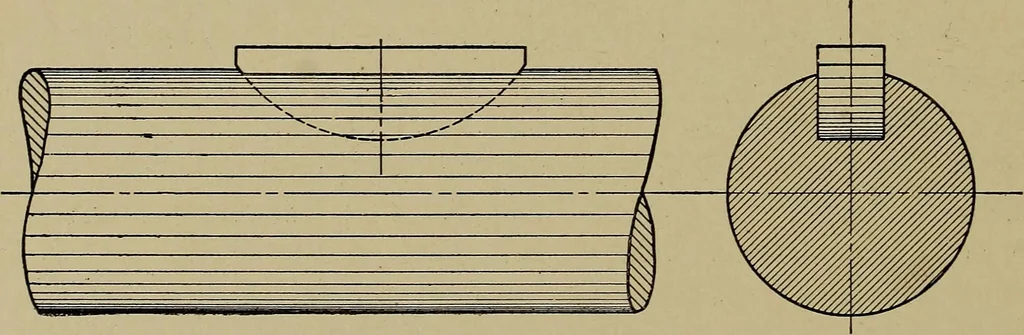

practicalarticle. It is usually provided with a head, or gib, which permitsa draw hook to be used to wedge between the face of the hub and thekey to facilitate starting the key from its seat. Two keys at 90° from each other may be used in cases whereone key will not suffice. The fine workmanship… … Fig. 38. Woodruff Key certain locations. This key is a half-disk sunk in the shaft and the hubis slipped over it. A simple rotary cutter is dropped into the shaftto produce the key seat; because of the depth in the shaft, thetendency to rock sidewise is eliminated, and the drive is by shear.…
