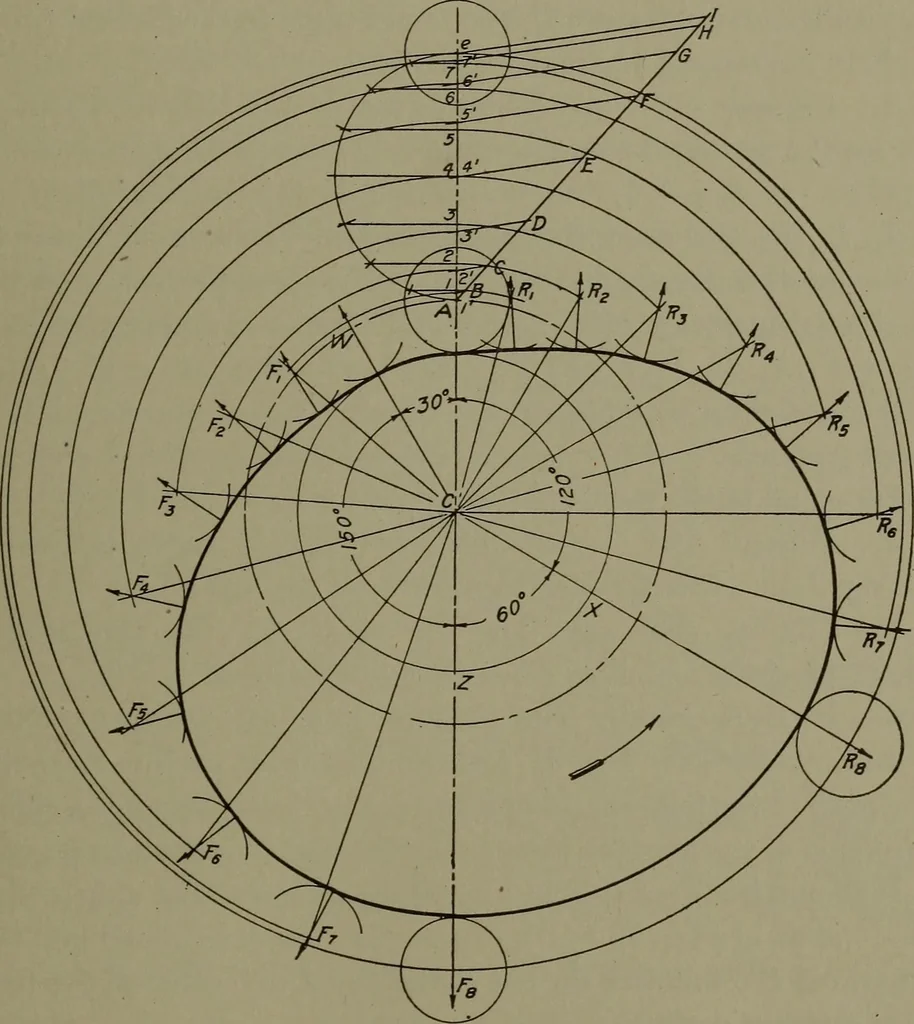

a uniformly accelerated and retardedmotion, while the cam turns through 150°; it is then to remain atrest while the cam rotates through the remaining 30°, when the same MACHINE DRAWING 103 cycle of movement is to be repeated as long as desired. This is briefly expressed as follows: Harmonic rise… … Fig. 90. Diagram of Complex Motion Plate Cam distances giving harmonic motion of the follower; and for purposesof the fall, by the principles of Fig. 89, into distances giving uniformlyaccelerated and retarded motion. Eight spaces are chosen, so thatthe process of making these divisions is an exact…
