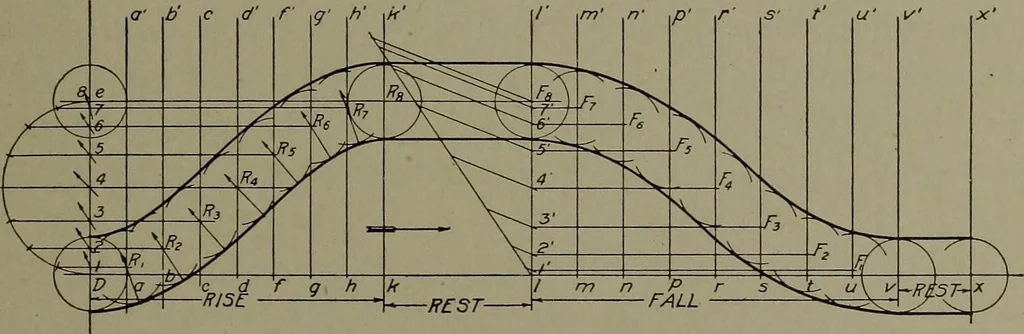

ositions for the rise along path D8 fulfilling the require-ment of harmonic motion, and for the fall along path IF8, fulfillingthe requirements of uniformly accelerated and retarded motion.This is shown in the figure, and it is observed that no change fromthe method of Fig. 90 is employed. 2. Cam… … Fig. 91. Diagram Showing Development o fTranslation Cam cam arc (in this case the straight line Dx), become parallel lines,perpendicular to Dx. The cam arc of rise in Fig. 90 is now repre-sented in Fig. 91 by the distance D8, which should fulfill the relation ^ft~ = ttwx ; in order to make the same…
