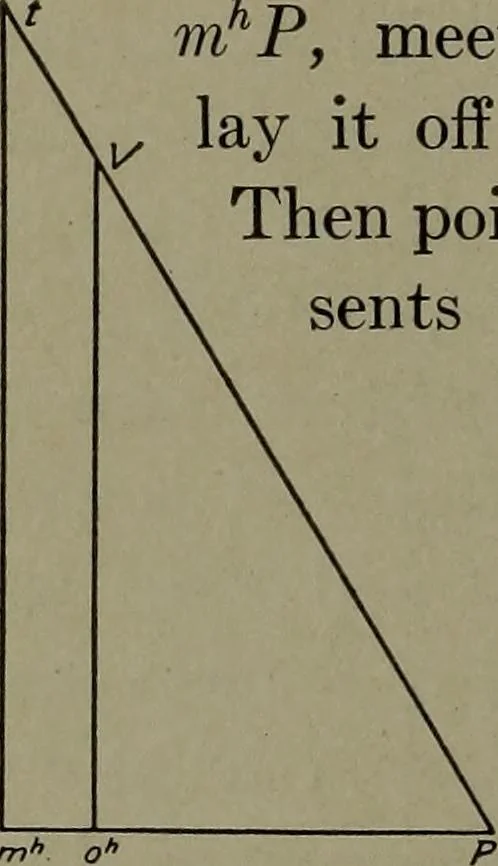

h is thevertical projection of this middle circle, is found from 0V in a wayexactly similar to that in which the ellipse for the horizontal pro-jection was found from 0h. The next step is to draw the guide-pulley and its shaft, andto do this we shall revolve the central ellipse over in each view… … MACHINE DRAWING 123 Ov from the ground line. Draw 061 through point 1 parallel toO^o4. With o4 as a center, and with a radius equal to the radius ofthe guide-pulley, cut oQl at o6, and cut DhMh extended at o5. Pointso6, o4, and o5 will be in a straight line, and the line joining them willbe the…
