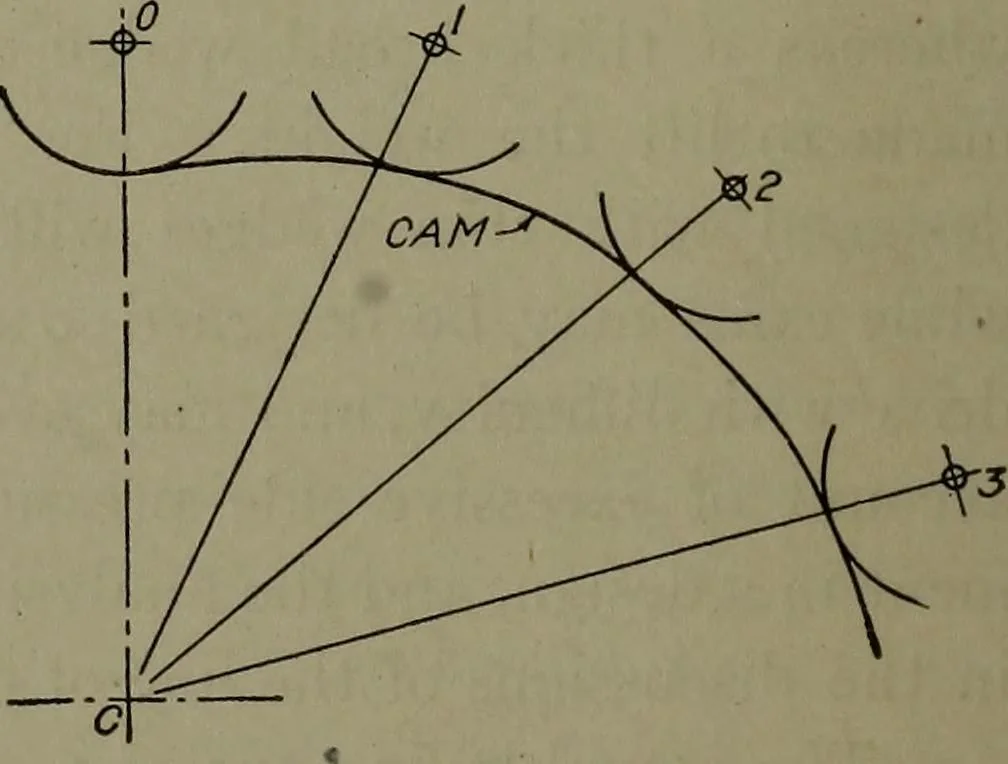

ns of a pair of compasses, laying off equalangles to complete one revo-lution of the cam and show-ing the follower in position ateach step. This is shown inFig. 81, and is the method usu-ally followed in cam design.This does not mean that thetracing-cloth method should bediscarded, for it is useful… … Fig. 78. Layout for Cam MACHINE DRAWING 85 PRACTICAL EXAMPLES IN LAYING OUT CAMS Statement of Problems. From the principles just stated, theuniform course of procedure in laying out a cam is as follows: 1. Draw the follower in several positions in its path. 2. Draw cam radii corresponding to these…
