Machine drawing; a practical guide to the standard methods of graphical representation of machines, including complete detail drawings of a duplex pump and of a direct-current generator (1914)
Griffin, Charles Lewis, 1867-, Adams, Charles Clyde, 1882- joint author · Chicago, American technical society · leaf 116

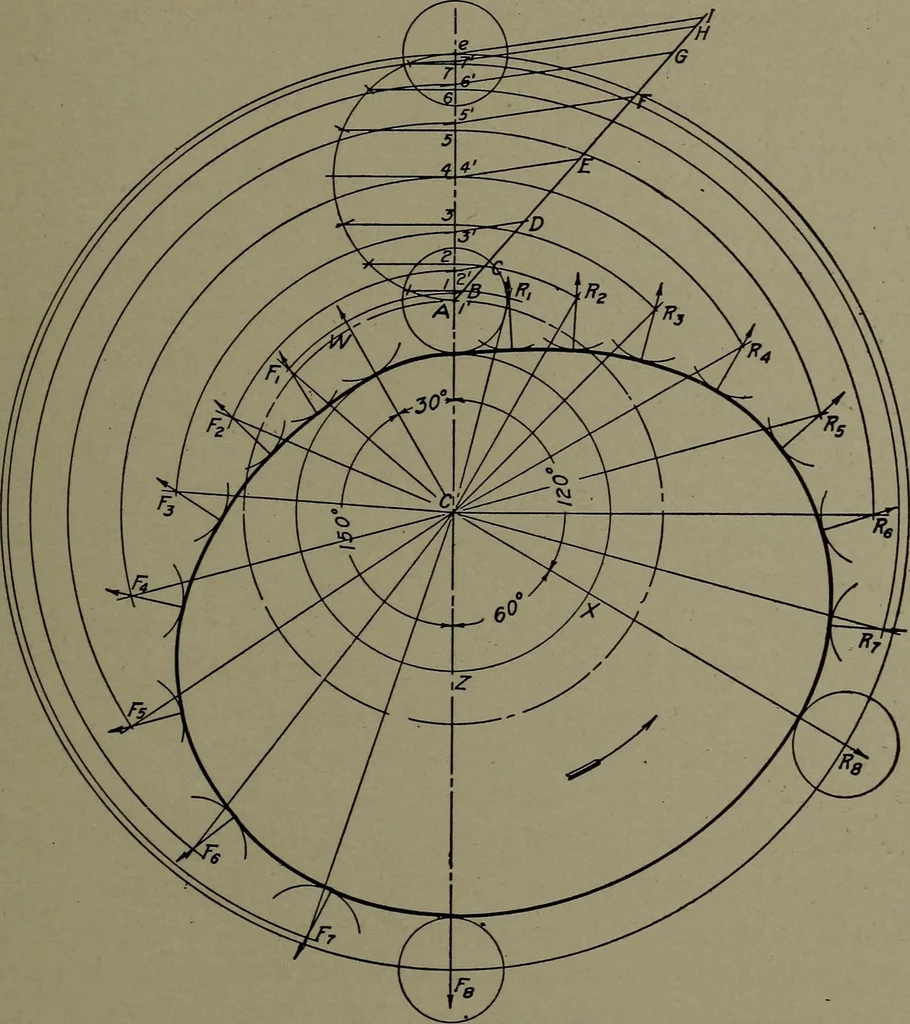

MACHINE DRAWING 103 cycle of movement is to be repeated as long as desired. This is briefly expressed as follows: Harmonic rise 120° Rest 60° Uniformly accelerated and retarded fall 150° Rest.. 30° 1. Follower Positions. The length of travel Ae being known, it is divided for purposes of the rise,… … Fig. 90. Diagram of Complex Motion Plate Cam distances giving harmonic motion of the follower; and for purposesof the fall, by the principles of Fig. 89, into distances giving uniformlyaccelerated and retarded motion. Eight spaces are chosen, so thatthe process of making these divisions is an exact…
