Machine drawing; a practical guide to the standard methods of graphical representation of machines, including complete detail drawings of a duplex pump and of a direct-current generator (1914)
Griffin, Charles Lewis, 1867-, Adams, Charles Clyde, 1882- joint author · Chicago, American technical society · leaf 233

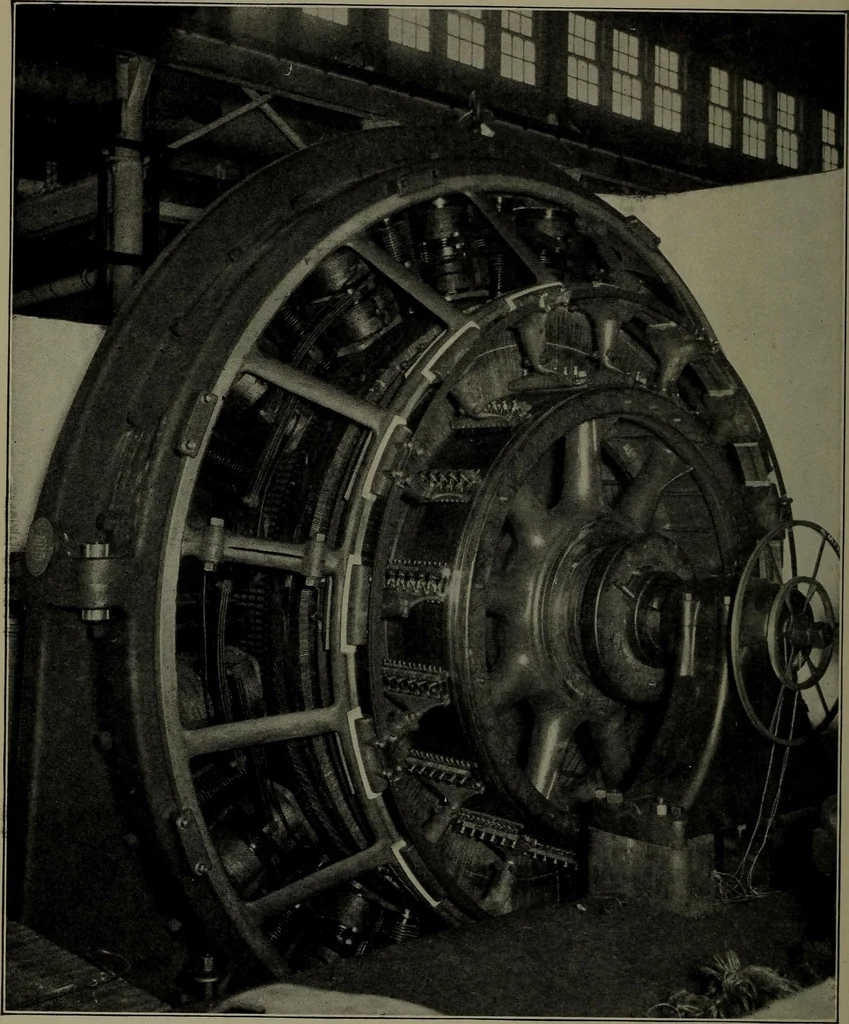

inches, except in the case of Plate XVII; thisplate may be 18 inches X 24 inches or 24 inches X 36 inches, depend-ing upon the scale chosen by the student. Plates XII and XIV are to be in pencil. Plate XVI is to beinked on tracing cloth. The others should be inked. The date, and the students name… … AUXILIARY POLE GENERATOR OF 550-VOLT AND 1500-KILOWATT CAPACITYINSTALLED FOR ARMOUR AND COMPANY, CHICAGO Courtesy of Crocker-Wheeler Company MACHINE DRAWING PART III B—ELECTRICAL INTRODUCTION Requirements. Having learned the general principles involvedin making a correct mechanical drawing of any…
