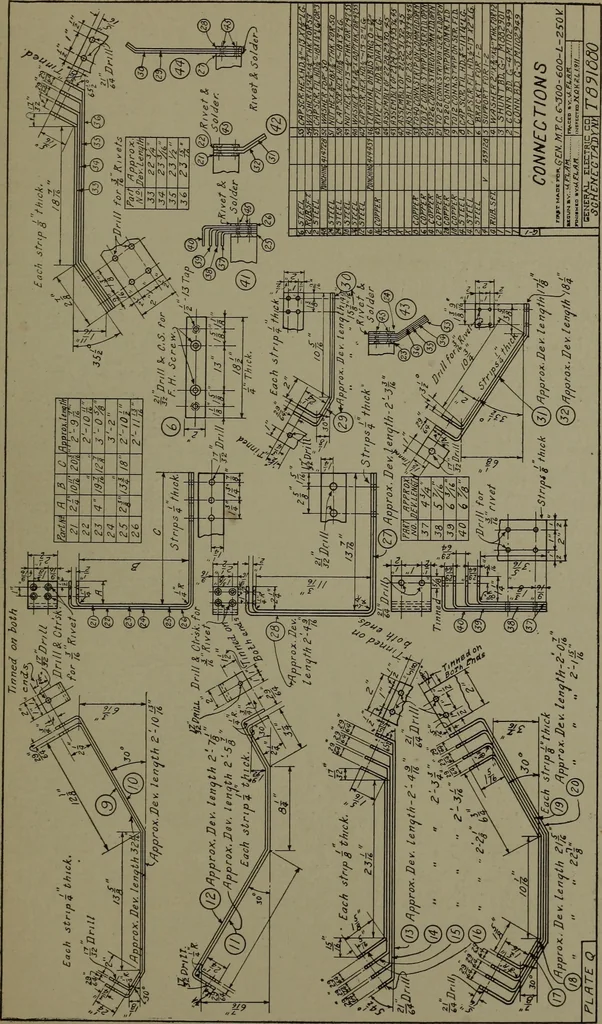

262 MACHINE DRAWING parts. Note how the cable connections between the bus rings andthe terminal blocks have been indicated only by a line with arrow-heads; that is, these cables will hang in a loop, and there is no usewasting time or effort in drawing them in completely. PLATE Q. CONNECTIONS Having…
