Machine drawing; a practical guide to the standard methods of graphical representation of machines, including complete detail drawings of a duplex pump and of a direct-current generator (1914)

Griffin, Charles Lewis, 1867-, Adams, Charles Clyde, 1882- joint author · Chicago, American technical society · leaf 31

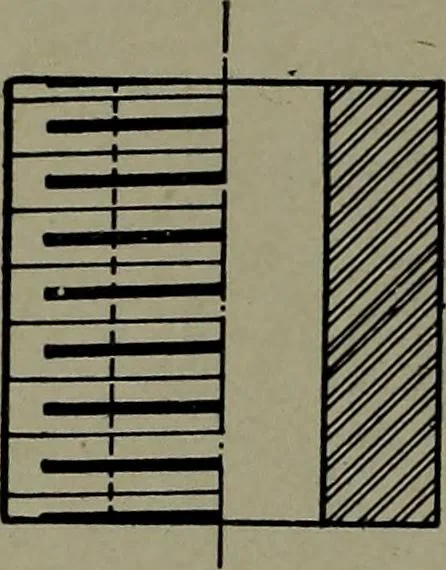

An illustration from Machine drawing; a practical guide to the standard methods of graphical representation of machines, including complete detail drawings of a duplex pump and of a direct-current generator, 1914, leaf 31
he standard adopted by theUnited States Government, andthe Whitworth or English stand-ard. Specifications for Bolts andNuts. A bolt is a cylindrical barupset at one end to form a headand having a screw thread cut at the other end. A nut is a hollow piece of metal in which a screw thread has…
