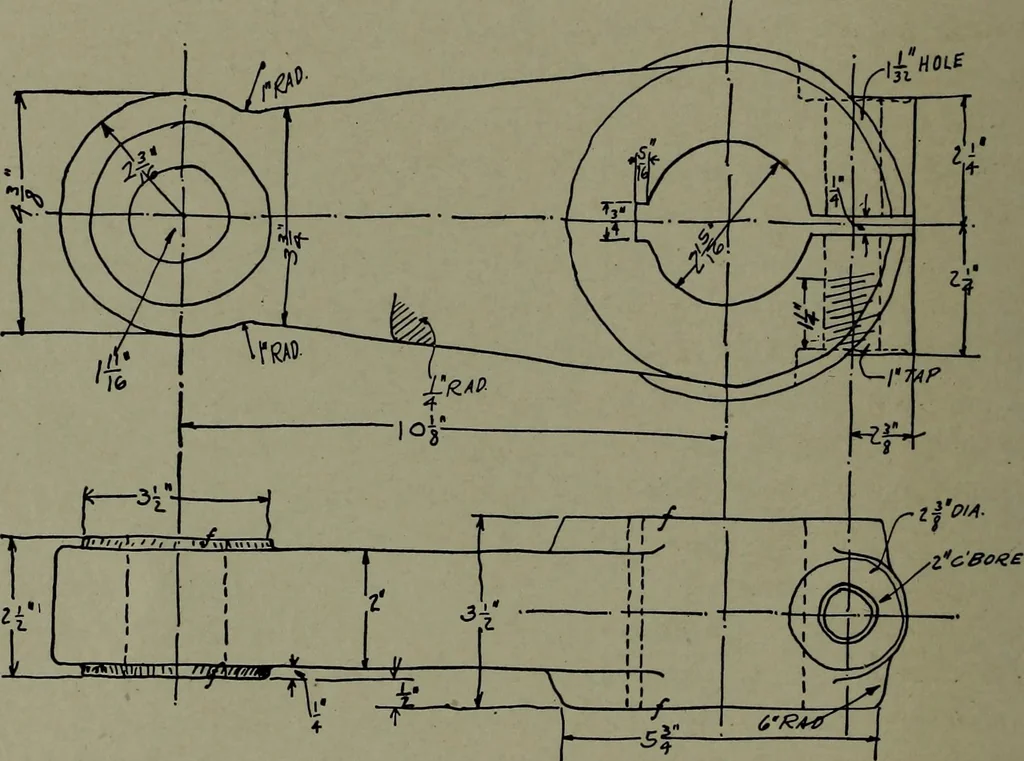

y properlylocated but that it has the three dimensions, length, breadth, andthickness properly noted. Thus in Fig. 31, the large hub should first be located by givingits distance 10J from the center of the smaller hub, then its diameter51 should be given, the distance between its faces 3|, and 6… … »-A\^li| ITTT »lftt*m- Fig. 31. Preliminary Sketch of Crank be located by the figure 2J to its center, its location in the otherdirection being on the center line of the arm. This boss has adiameter of 2f and a length of 2| each side of the center to thefinished surface, the depth of the…
