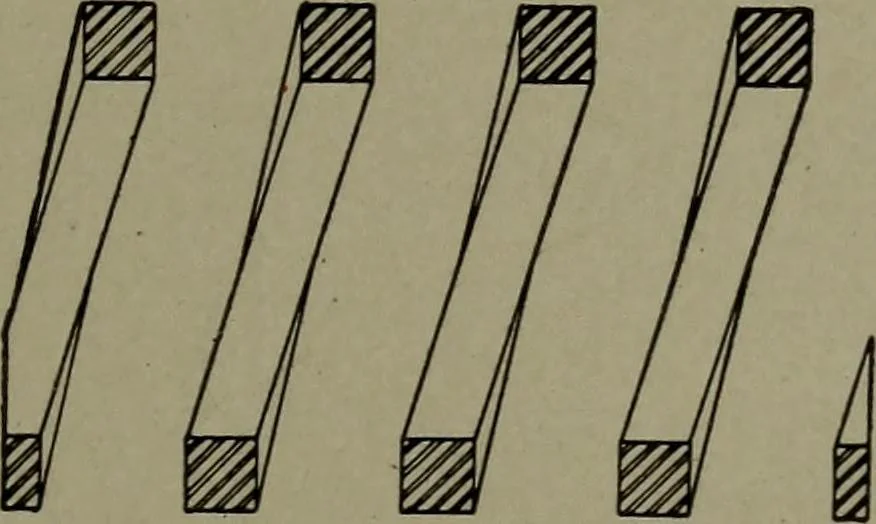

Fig. 59. Conventional Drawingfor Square Wire Spring Fig. 60. Half-Sections of Round andSquare Wire Springs tion, except that straight lines are used in place of curved lines.Fig. 58 shows the conventional drawing of a spring of round wire;and Fig. 59, of a spring of square wire. Springs are often…
