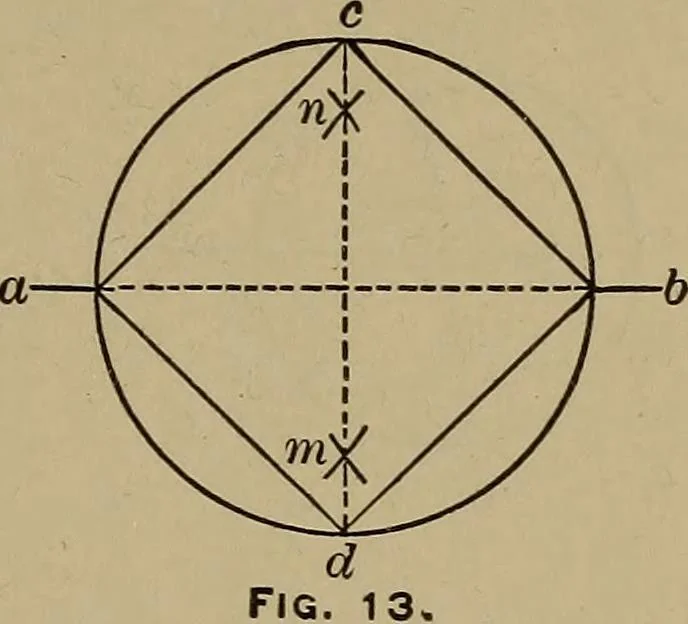

PROBLEMS IN GEOMETRICAL DRAWING. I87 To draw a square inside agiven circle. (See Fig. 13). Solution: Draw the line a b through thecenter of the circle. From pointsof intersection at a and d, describewith any suitable radius arcs inter-secting at n and m. Draw throughthe points the line c d.… … To draw a square outside agiven circle. (See Fig. 14). Solution: Draw lines a b and c d, andfrom points of intersection at b andc, describe half circles; their pointsof intersection determine the sidesof the square. To draw a hexagon within a givencircle. (See Fig. 15). Apply the radius as a chord…
