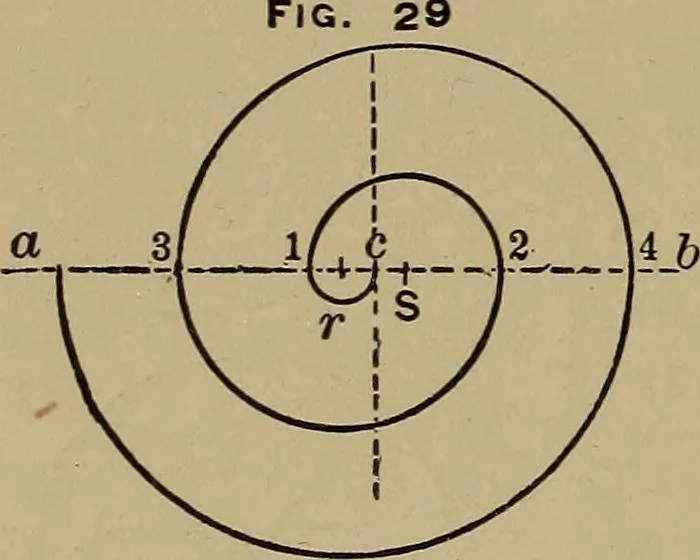

the first tangent the length of the arc 1to b; on the second tangent the arc 2 to b, etc. This will givethe points through which to draw the involute. To draw a spiral from a givenpoint, c. Solution: Draw the line a b through thepoint c. Set off the centers r andS, one-fourth as far from c as… … If a cone (see
