Machinists' and draftsmen's handbook, containing tables, rules and formulas, with numerous examples explaining the principles of mathematics and mechanics as applied to the mechanical trades; intended as a reference book for all interested in mechanical work (1910)
Lobben, Peder, 1858- · New York, D. Van Nostrand company · leaf 367

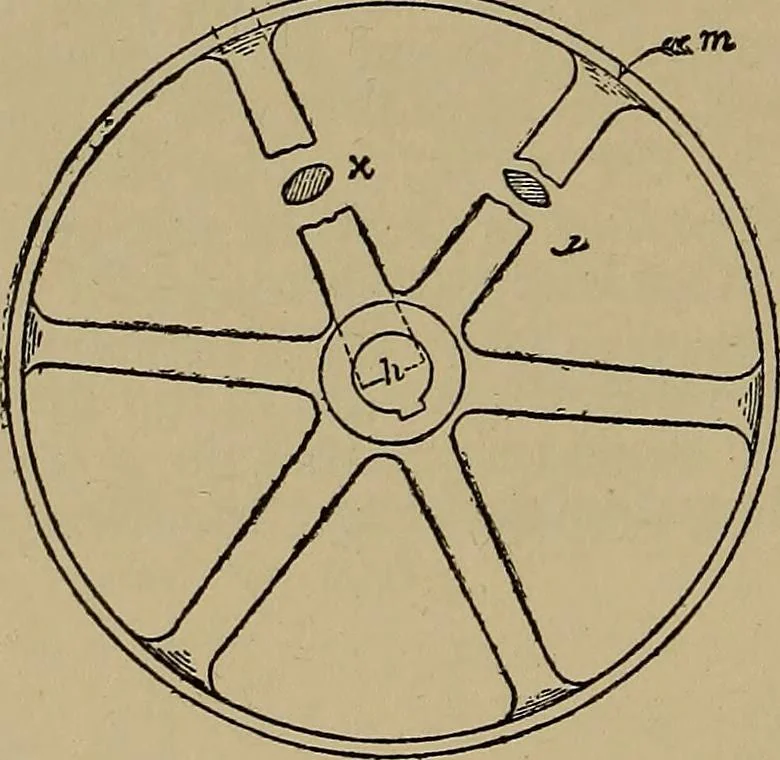

r of hub.D = Diameter of pulley in inches.Example: Find width of arms at the hub for a 60-inch pulley. Solution: h = 6o ~~ I2 + ii = 4i inches.16The width of the arm at the rim should be three-fourths ofthe width at the hub, and the thickness should be one-half of thewidth for arms with segmental… … h = Width of arm at the hub.D = Diam. of pulley in inches.W = W7idth of pulley in inches.n = Number of arms. At the rim the width of thearm is 0.85 times the width atthe hub. Thickness of armequals half the width. Example: Calculate the width of thearms for a pulley 96 diameter,30 face, having two…
Mechanical engineering
